ShopIBT | Parallel Shaft Gear Drive, Type S Single Reduction Style A, Series: 22 Series, 2.53:1 Gear Ratio, 14 HP, Shaft Input, Shaft Output, 1 Inch Diameter Input, 1/4 x 1/8 Inch Input, 1/4 x 1/8 Inch Output Keyway, 97.5 % Efficiency, Oil Lubrication, Shaft Mounting, Cast Iron, 6-1/4 Inch Length x 8-1/2 Inch Width x 9-1/4 Inch Height Dimensions

0220-01507

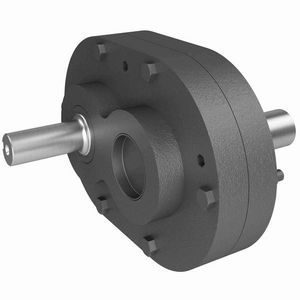

Parallel Shaft Gear Drive, Type S Single Reduction Style A, Series: 22 Series, 2.53:1 Gear Ratio, 14 HP, Shaft Input, Shaft Output, 1 Inch Diameter Input, 1/4 x 1/8 Inch Input, 1/4 x 1/8 Inch Output Keyway, 97.5 % Efficiency, Oil Lubrication, Shaft Mounting, Cast Iron, 6-1/4 Inch Length x 8-1/2 Inch Width x 9-1/4 Inch Height Dimensions

Factory Order

MFG #0220-01507

IBT #00440021857

Industry Part #22 2.53/1 A S

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Dimensions: 6-1/4 in L x 8-1/2 in W x 9-1/4 in H
Efficiency: 97.5 %
Gear Ratio: 2.53:1
Horsepower: 14 hp
Input Size: 1 in Dia
Input Type: Shaft
Keyway Size: 1/4 x 1/8 in Input, 1/4 x 1/8 in Output
Lubrication Type: Oil
Material: Cast Iron
Mounting Type: Shaft
Output Type: Shaft
Series: 22 Series
Type: Type S Single Reduction Style A
Width: 9.5

: Parallel shaft gearing utilizes helical or spur gearing with shafts that are parallel and offset. Input connection can be facilitated using couplings, belt drives or C-face quill. Various output configurations are available. These gearboxes are used individually and also in combination with other gearboxes to easily fine tune the ratio to the application requirement. Hub City® Parallel Shaft Gear Drive, Type S Single Reduction Style A, Series: 22 Series, 2.53:1 Gear Ratio, 14 HP, Shaft Input, Shaft Output, 1 in Dia Input, 1/4 x 1/8 in Input, 1/4 x 1/8 in Output Keyway, 97.5 % Efficiency, Oil Lubrication, Shaft Mounting, Cast Iron, 6-1/4 in L x 8-1/2 in W x 9-1/4 in H Dimensions
