4B6GC8-20MGX

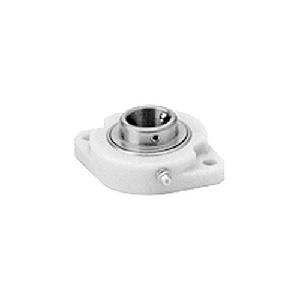

Ball Bearing Assembly, 20 mm Bore, 76.2 mm Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 95.25 mm OAL/52 mm OD Overall Length/Diameter, 31.496 mm Overall Height, Set Screw Locking Device, 400 Stainless Steel Bearing, Buna-N Seal, 2650 lb Dyna
Factory Order
MFG #4B6GC8-20MGX
IBT #00845255476
Industry Part #190050483
- Bearing Material: 400 Stainless SteelBolt Center-to-Center Length: 76.2 mmBore Diameter: 20 mmFlange Mounting Type: 2-BoltLoad Capacity: 2650 lb Dynamic/1425 lb StaticLocking Device: Set ScrewOverall Height: 31.496 mmOverall Length/Diameter: 95.25 mm OAL/52 mm ODSeal Material: Buna-NSeries: 4B Value SeriesTemperature Rating: -4 to 200 °FType: Cylindrical Bore Open End Self-Aligning Single Row Standard Duty
- Designed with corrosion-resistant materials and food-grade lubricant, the product can withstand aggressive wash-downs management and a variety of wet and dry contaminants. The result enhanced reliability that helps extend bearing life, improve production uptime and most importantly elevate food safety. EDT Solution® Ball Bearing Assembly, Cylindrical Bore Open End Self-Aligning Single Row Standard Duty, Series: 4B Value Series, 20 mm Bore, 76.2 mm Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 95.25 mm OAL/52 mm OD Overall Length/Diameter, 31.496 mm Overall Height, Set Screw Locking Device, 400 Stainless Steel Bearing, Buna-N Seal, 2650 lb Dynamic/1425 lb Static Load, -4 to 200 °F
Timken 4B6GC8-20MGXBall Bearing Assembly, 20 mm Bore, 76.2 mm Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 95.25 mm OAL/52 mm OD Overall Length/Diameter, 31.496 mm Overall Height, Set Screw Locking Device, 400 Stainless Steel Bearing, Buna-N Seal, 2650 lb Dyna
IBT #00845255476
MFG #4B6GC8-20MGX
Industry Part #190050483
