ShopIBT | AC Motor, 0.33 HP, 208/230/460 VAC, 1.9/1.6/0.8 A, 60 Hz Frequency, 3 ph, 1725 RPM Speed, 1 Speed, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1.35 Service Factor, 4.7 ft-lb Torque, C-Face/Rigid Base Mounting, 40 to 76 C, Steel, 11.35 in L x 9.28 in W Dimensions

CM3534

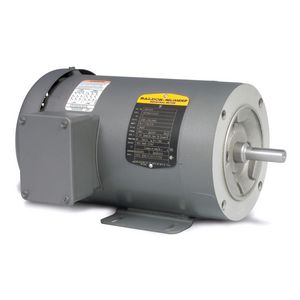

AC Motor, 0.33 HP, 208/230/460 VAC, 1.9/1.6/0.8 A, 60 Hz Frequency, 3 ph, 1725 RPM Speed, 1 Speed, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1.35 Service Factor, 4.7 ft-lb Torque, C-Face/Rigid Base Mounting, 40 to 76 C, Steel, 11.35 in L x 9.28 in W Dimensions

MFG #CM3534

IBT #00160007340

Industry Part #CM3104

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Amperage Rating: 1.9/1.6/0.8 Amps
Application Type: General Purpose AC Motors, Compressor Motors, Fan and Blower Motors
Bearing Type: Ball
Dimensions: 11.35 in L x 9.28 in W
Enclosure Type: TEFC/NEMA B
Frame: 56C
Frequency Rating: 60 Hz
Horsepower: 0.33 HP
Insulation Class: Class F
Material: Steel
Mounting Type: C-Face/Rigid Base
Number of Speeds: 1
Phase: 3
Rotation: Reversible
Service Factor: 1.35
Shaft Size: 5/8 Inch
Special Features: Continuous Duty Motor
Speed: 1725 RPM
Temperature Rating: 40 to 76 °C
Torque Rating: 4.7 ft-lb
Type: Type 3413M Continuous Duty
Voltage Rating: 208/230/460 VAC
Width: 10.63

: Baldor-Reliance AC Motor, Type 3413M Continuous Duty, General Purpose AC Motors, Compressor Motors, Fan and Blower Motors Application, 0.33 HP, 208/230/460 VAC, 1.9/1.6/0.8 A, 60 Hz Frequency, 3 ph, 1725 RPM Speed, 1 Speed, TEFC/NEMA B Enclosure, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1.35 Service Factor, Ball Bearing, 4.7 ft-lb Torque, C-Face/Rigid Base Mounting, 40 to 76 °C, Insulation Class: Class F, Steel, 11.35 in L x 9.28 in W Dimensions

$656.88Each
