EM3116T

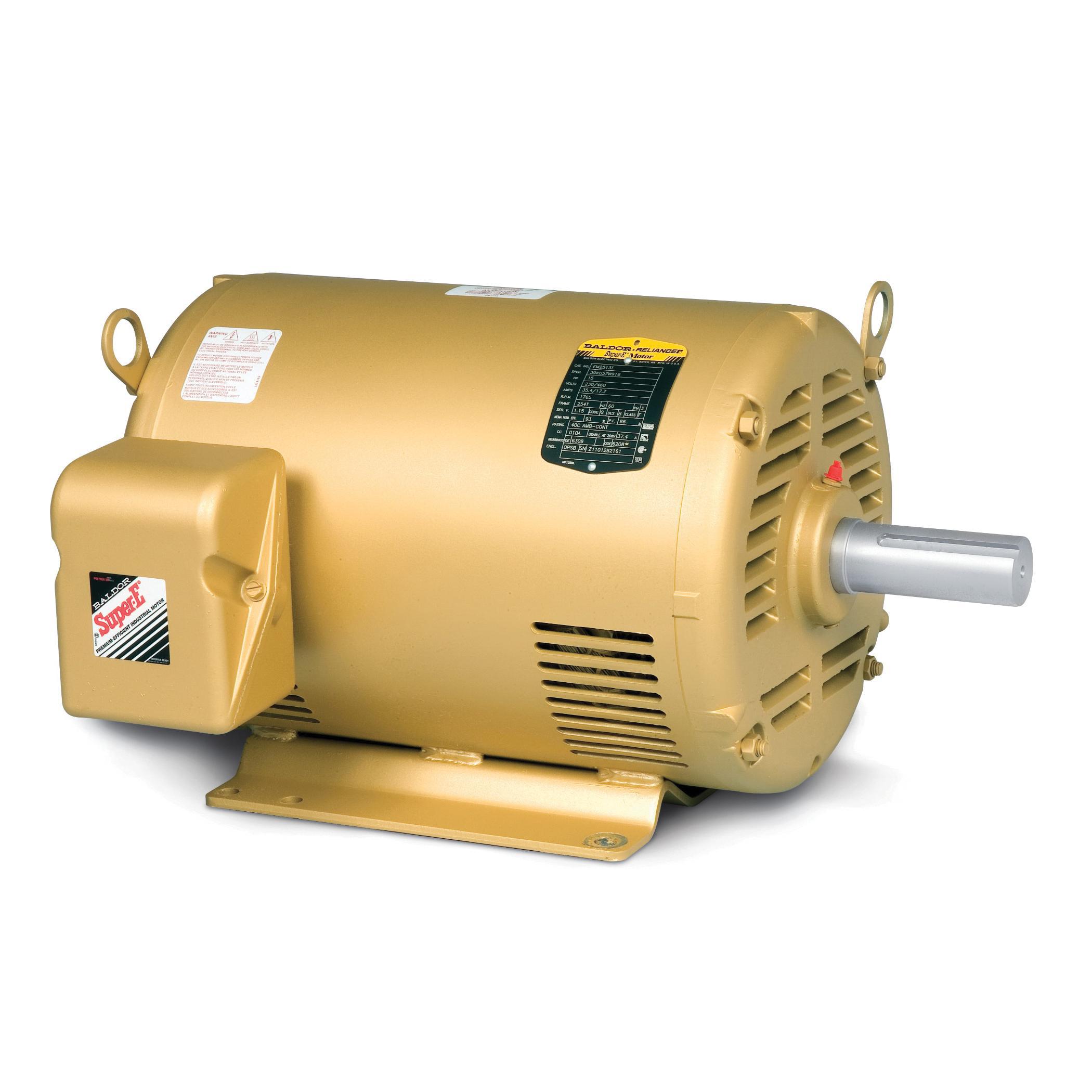

AC Motor, 1 HP, 208/230/460 VAC, 3.1/3/1.5 A, 60 Hz Frequency, 3 ph, 1760 RPM Speed, 1 Speed, OPSB/NEMA B Enclosure, 143T Frame, 7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 2.99 ft-lb Torque, F1/Foot Rigid Mounting, 40 to 76 C, Insulation Class: Class F, Steel, 11.12 in L x 9.98 in W x 6.81 in H Dimensions
MFG #EM3116T
IBT #00160011036
Industry Part #M3116T
- Amperage Rating: 3.1/3/1.5 AmpsApplication Type: General Purpose AC Motors, Compressor Motors, Fan and Blower MotorsBearing Type: BallDimensions: 11.12 in L x 9.98 in W x 6.81 in HEnclosure Type: OPSB/NEMA BFrame: 143TFrequency Rating: 60 HzHorsepower: 1 HPInsulation Class: Class FMaterial: SteelMounting Type: F1/Foot RigidNumber of Speeds: 1Phase: 3Rotation: ReversibleService Factor: 1.15Shaft Size: 7/8 InchTemperature Rating: 40 to 76 °CTorque Rating: 2.99 ft-lbType: Type 3519M Continuous DutyVoltage Rating: 208/230/460 VAC
Baldor® EM3116TAC Motor, 1 HP, 208/230/460 VAC, 3.1/3/1.5 A, 60 Hz Frequency, 3 ph, 1760 RPM Speed, 1 Speed, OPSB/NEMA B Enclosure, 143T Frame, 7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 2.99 ft-lb Torque, F1/Foot Rigid Mounting, 40 to 76 C, Insulation Class: Class F, Steel, 11.12 in L x 9.98 in W x 6.81 in H Dimensions
IBT #00160011036
MFG #EM3116T
Industry Part #M3116T
