VEM3546T

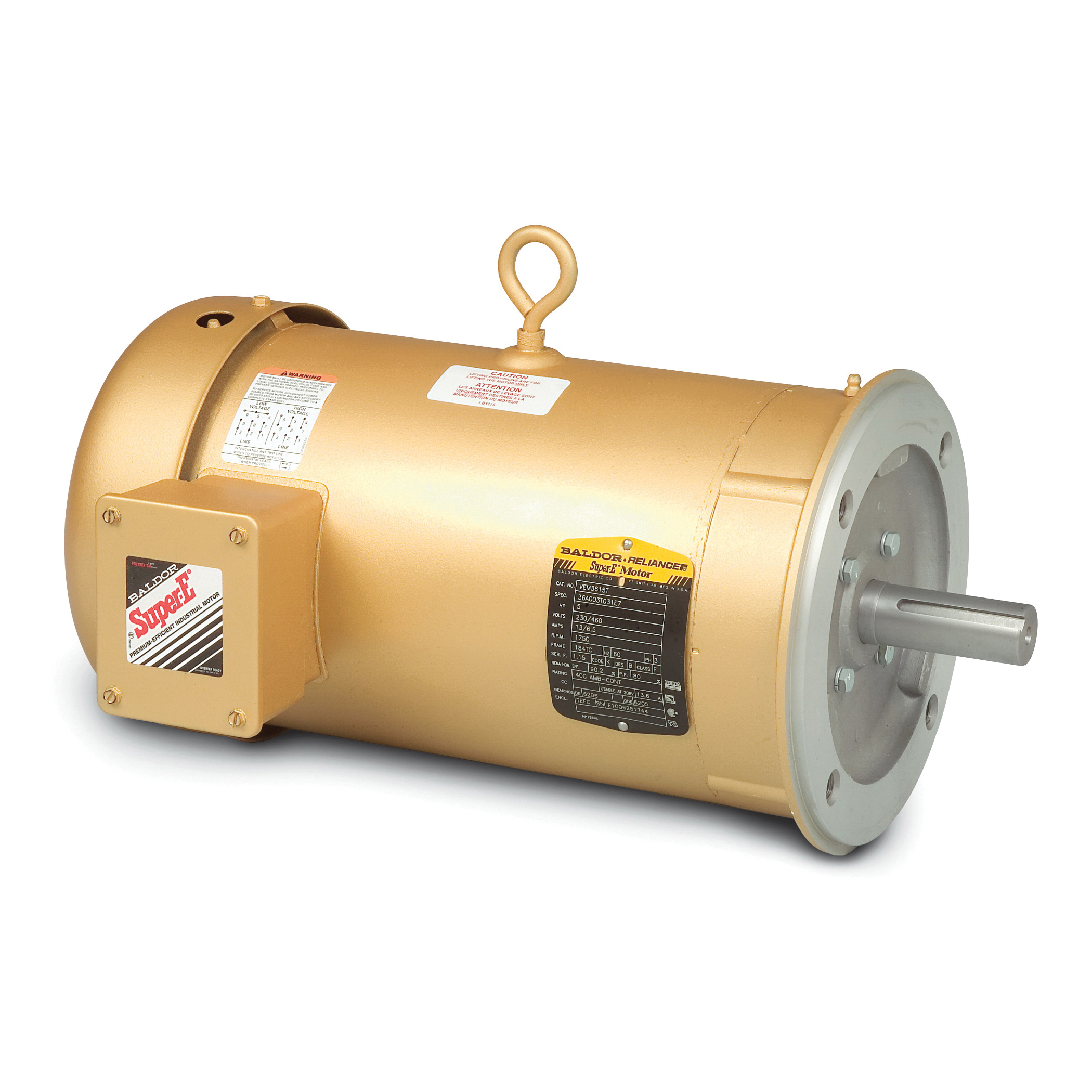

AC Motor, 1 HP, 208/230/460 VAC, 3.1/3/1.5 A, 60 Hz, 3 Phase, 1760 RPM, 1 Speed, TEFC/NEMA B, 143TC Frame, 7/8 in Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 2.99 ft-lb, C-Face/Footless/F1 Mount, 40 to 76 C°, Insulation Class: Class F, Steel, 12.29 in L x 10.26 in W
MFG #VEM3546T
IBT #00160025100
- Amperage Rating: 3.1/3/1.5 AmpsApplication Type: General Purpose AC Motors, Compressor Motors, Fan and Blower MotorsBearing Type: BallDimensions: 12.29 in L x 10.26 in WEnclosure Type: TEFC/NEMA BFrame: 143TCFrequency Rating: 60 HzHorsepower: 1 HPInsulation Class: Class FMaterial: SteelMounting Type: C-Face/Footless/F1Number of Speeds: 1Phase: 3Rotation: ReversibleService Factor: 1.15Shaft Size: 7/8 InchTemperature Rating: 40 to 76 °CTorque Rating: 2.99 ft-lbType: Type 3519M Continuous DutyVoltage Rating: 208/230/460 VAC
Baldor® VEM3546TAC Motor, 1 HP, 208/230/460 VAC, 3.1/3/1.5 A, 60 Hz, 3 Phase, 1760 RPM, 1 Speed, TEFC/NEMA B, 143TC Frame, 7/8 in Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 2.99 ft-lb, C-Face/Footless/F1 Mount, 40 to 76 C°, Insulation Class: Class F, Steel, 12.29 in L x 10.26 in W
IBT #00160025100
MFG #VEM3546T
