VEUHM3546T

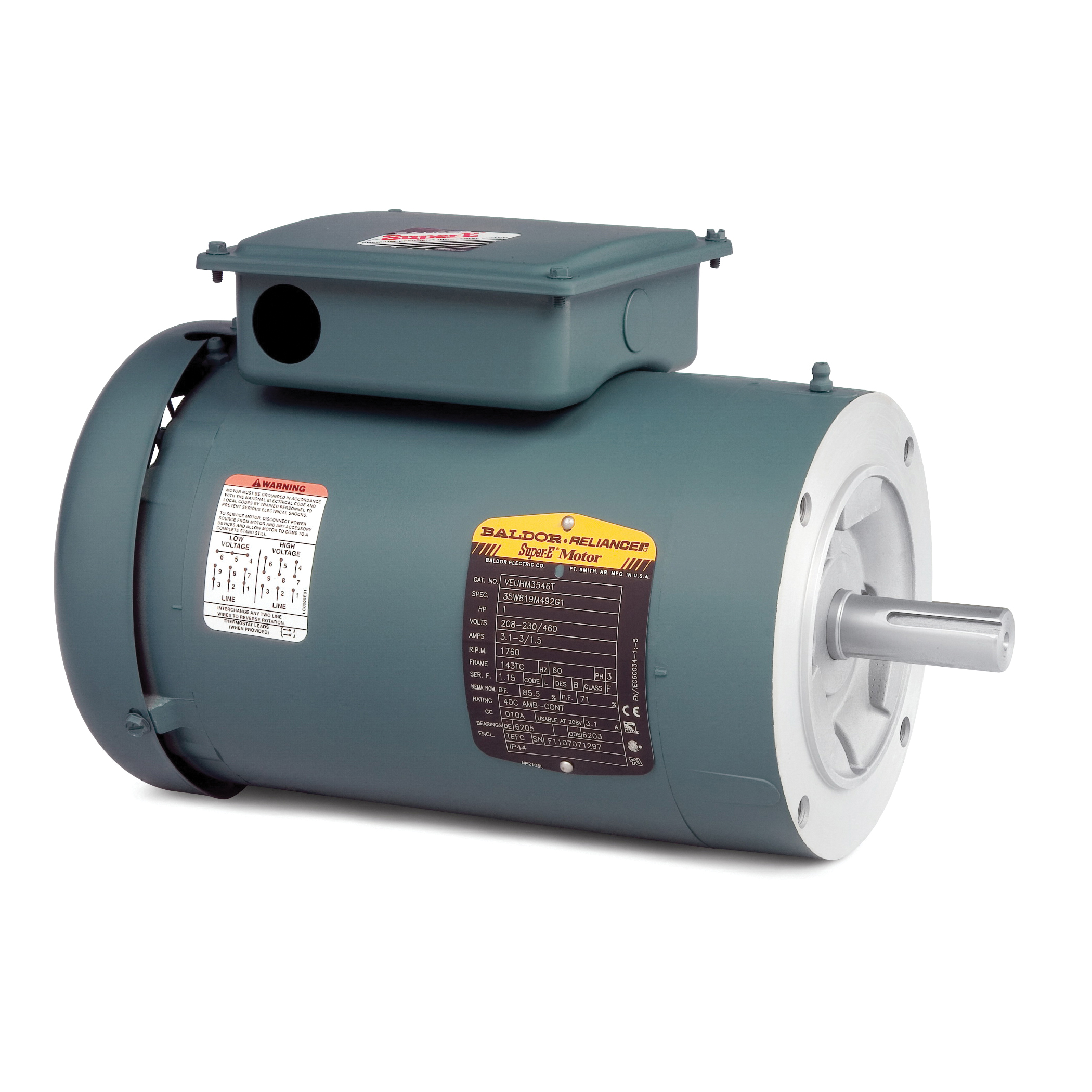

AC Motor, 1 HP, 208/230/460 VAC, 3.1/3/1.5 A, 60 Hz Frequency, 3 ph, 1760 RPM Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 143TC Frame, 7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 2.99 ft-lb Torque, C-Face Footless Mounting, 40 C, Insulation Class: Class F, Steel, 13.29 in L Dimensions
MFG #VEUHM3546T
IBT #00160304395
- Amperage Rating: 3.1/3/1.5 AmpsApplication Type: General Purpose AC Motors, Unit Handling Motors, Elevator Motors, Hoist MotorsBearing Type: BallDimensions: 13.29 in LEnclosure Type: Totally Enclosed Fan CooledFrame: 143TCFrequency Rating: 60 HzHorsepower: 1 HPInsulation Class: Class FMaterial: SteelMounting Type: C-Face FootlessNumber of Speeds: 1Phase: 3 phRotation: ReversibleService Factor: 1.15Shaft Size: 7/8 InchTemperature Rating: 40 °CTorque Rating: 2.99 ft-lbType: Continuous Duty Direct On Line Type 3520MVoltage Rating: 208/230/460 VAC
Baldor® VEUHM3546TAC Motor, 1 HP, 208/230/460 VAC, 3.1/3/1.5 A, 60 Hz Frequency, 3 ph, 1760 RPM Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 143TC Frame, 7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 2.99 ft-lb Torque, C-Face Footless Mounting, 40 C, Insulation Class: Class F, Steel, 13.29 in L Dimensions
IBT #00160304395
MFG #VEUHM3546T
