CEBM3546T

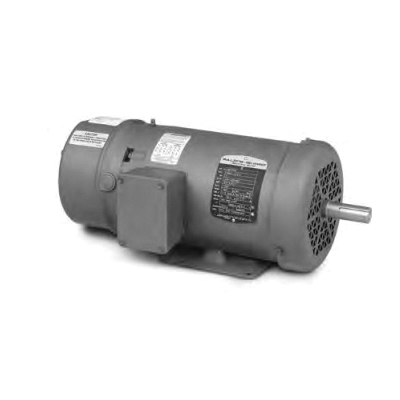

AC Motor, 1 HP, 208/230/460 VAC, 3.1/3.4/1.7 A, 60 Hz Frequency, 3 ph, 1760 RPM Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 143TC Frame, 7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 2.95 ft-lb Torque, C-Face/Rigid Base Mounting, 40 C°, Insulation Class: Class F, Steel, 17.86 in L x 10.25 in W Dimensions
MFG #CEBM3546T
IBT #00160312223
- Amperage Rating: 3.1/3.4/1.7 AmpsApplication Type: Brake Motors, General Purpose AC Motors, Unit Handling MotorsBearing Type: BallDimensions: 17.86 in L x 10.25 in WEnclosure Type: Totally Enclosed Fan CooledFrame: 143TCFrequency Rating: 60 HzHorsepower: 1 HPInsulation Class: Class FMaterial: SteelMounting Type: C-Face/Rigid BaseNumber of Speeds: 1Phase: 3 phRotation: ReversibleService Factor: 1.15Shaft Size: 7/8 InchTemperature Rating: 40 °CTorque Rating: 2.95 ft-lbType: Continuous Duty Type 3522MVoltage Rating: 208/230/460 VAC
Baldor® CEBM3546TAC Motor, 1 HP, 208/230/460 VAC, 3.1/3.4/1.7 A, 60 Hz Frequency, 3 ph, 1760 RPM Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 143TC Frame, 7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 2.95 ft-lb Torque, C-Face/Rigid Base Mounting, 40 C°, Insulation Class: Class F, Steel, 17.86 in L x 10.25 in W Dimensions
IBT #00160312223
MFG #CEBM3546T
