VEM3546-57

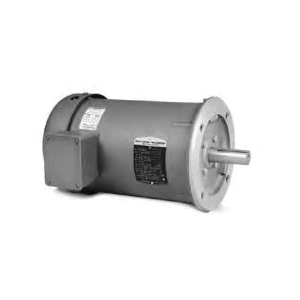

AC Motor, 1 HP, 230/400 VAC, 3.1/1.8 A, 50 Hz Frequency, 3 ph, 1440 RPM Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 3.66 ft-lb Torque, Footless Mounting, 40 C, Insulation Class: Class F, Steel, 12.23 in L x 10.26 in W Dimensions
MFG #VEM3546-57
IBT #00160322061
- Amperage Rating: 3.1/1.8 AmpsApplication Type: General Purpose AC Motors, Fan & Blower Motors, Compressor MotorsBearing Type: BallDimensions: 12.23 in L x 10.26 in WEnclosure Type: Totally Enclosed Fan CooledFrame: 56CFrequency Rating: 50 HzHorsepower: 1 HPInsulation Class: Class FMaterial: SteelMounting Type: FootlessNumber of Speeds: 1Phase: 3 phRotation: ReversibleService Factor: 1.15Shaft Size: 5/8 InchTemperature Rating: 40 °CTorque Rating: 3.66 ft-lbType: Continuous Duty Type 3518MVoltage Rating: 230/400 VAC
Baldor® VEM3546-57AC Motor, 1 HP, 230/400 VAC, 3.1/1.8 A, 50 Hz Frequency, 3 ph, 1440 RPM Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 3.66 ft-lb Torque, Footless Mounting, 40 C, Insulation Class: Class F, Steel, 12.23 in L x 10.26 in W Dimensions
IBT #00160322061
MFG #VEM3546-57
