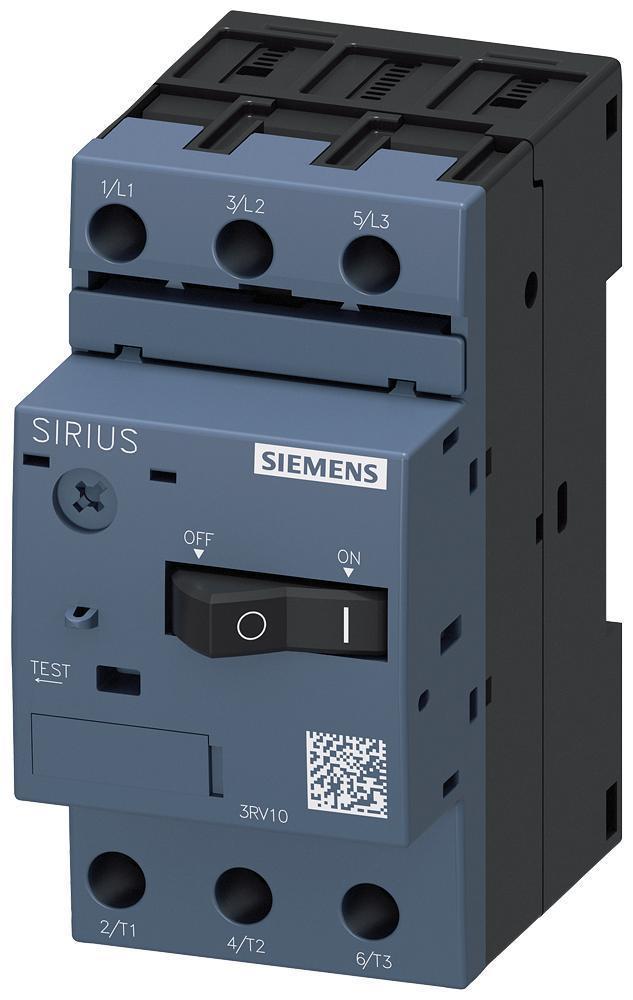

3RV1011-0CA10
Motor Protection Circuit Breaker, 690 VAC, 0.18 to 0.25 A, 0.12 kW Power, 50/60 Hz Frequency, 100 kA Interrupt, 3RV1/S00 Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Screw Connection, IP20 Enclosure, DIN Rail Mounting, -20 to 60 °C, 90 mm H x 45 mm W
Factory Order
MFG #3RV1011-0CA10
IBT #00130111647
Industry Part #7562973
- Amperage Rating: 0.18 to 0.25 AmpsConnection Type: ScrewDimensions: 90 mm H x 45 mm W x 81 mm DEnclosure Type: IP20Frame: 3RV1/S00Frequency Rating: 50/60 HzInterrupt Rating: 100 kAMounting Type: DIN RailNumber of Poles: 3Phase: 3Power Rating: 0.12 kWTemperature Rating: -20 to 60 °CTrip Type: Thermal/MagneticVoltage Rating: 690 VACWidth: 1.93
- 3RV1 motor starter protectors are compact, current limiting motor starter protectors which are optimized for load feeders. The motor starter protectors are used for switching and protecting 3-phase induction motors of up to 45 kW at 400 VAC and for other loads with rated currents of up to 100 A. Siemens Motor Protection Circuit Breaker, 690 VAC, 0.18 to 0.25 A, 0.12 kW Power, 50/60 Hz Frequency, 100 kA Interrupt, 3RV1/S00 Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Screw Connection, IP20 Enclosure, DIN Rail Mounting, -20 to 60 °C, 90 mm H x 45 mm W x 81 mm D Dimensions
Siemens 3RV1011-0CA10Motor Protection Circuit Breaker, 690 VAC, 0.18 to 0.25 A, 0.12 kW Power, 50/60 Hz Frequency, 100 kA Interrupt, 3RV1/S00 Frame, Thermal/Magnetic Trip, 3 Pole, 3 ph, Screw Connection, IP20 Enclosure, DIN Rail Mounting, -20 to 60 °C, 90 mm H x 45 mm W
IBT #00130111647
MFG #3RV1011-0CA10
Industry Part #7562973
