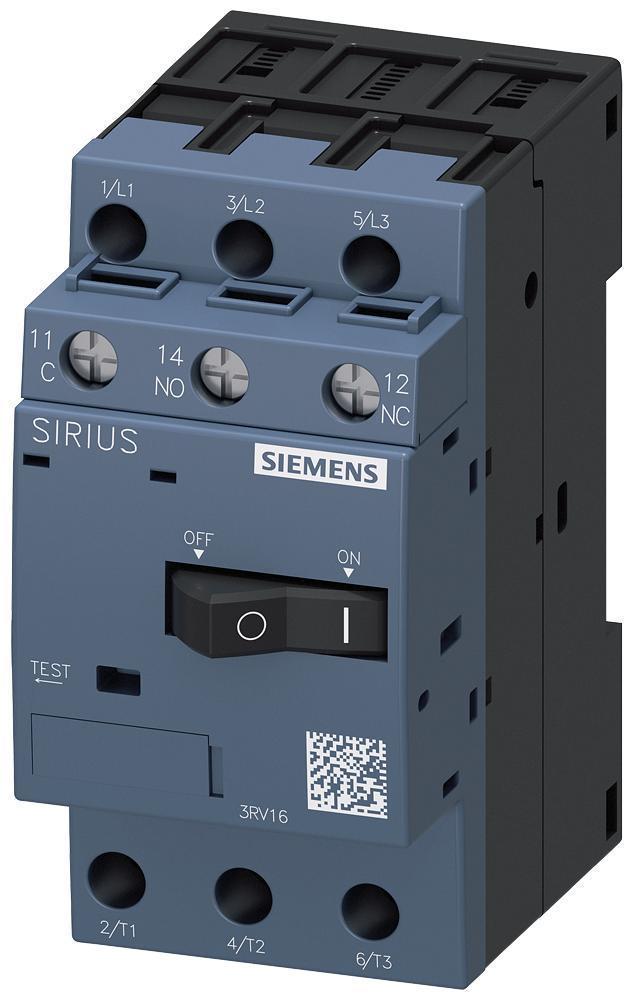

3RV1611-1DG14
Motor Protection Circuit Breaker, 400 VAC, 3 A, 50/60 Hz Frequency, 50 kA Interrupt, 3RV1/S00 Frame, Thermal/Magnetic Trip, 3 Pole, Screw Connection, 1CO Auxiliary, 18 to 2 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 °C, 90 mm H x 45 mm W
Factory Order
MFG #3RV1611-1DG14
IBT #00130112190
Industry Part #7477690
- Amperage Rating: 3 AmpsAuxiliary Contact Rating: 1COConnection Type: ScrewDimensions: 90 mm H x 45 mm W x 75 mm DEnclosure Type: IP20Frame: 3RV1/S00Frequency Rating: 50/60 HzInterrupt Rating: 50 kAMounting Type: DIN RailNumber of Poles: 3Temperature Rating: -20 to 60 °CTrip Type: Thermal/MagneticVoltage Rating: 400 VACWidth: 1.93Wire Size: 18 to 2 AWG
- 3RV1 motor starter protectors are compact, current limiting motor starter protectors which are optimized for load feeders. The motor starter protectors are used for switching and protecting 3-phase induction motors of up to 45 kW at 400 VAC and for other loads with rated currents of up to 100 A. Siemens Motor Protection Circuit Breaker, 400 VAC, 3 A, 50/60 Hz Frequency, 50 kA Interrupt, 3RV1/S00 Frame, Thermal/Magnetic Trip, 3 Pole, Screw Connection, 1CO Auxiliary, 18 to 2 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 °C, 90 mm H x 45 mm W x 75 mm D Dimensions
Siemens 3RV1611-1DG14Motor Protection Circuit Breaker, 400 VAC, 3 A, 50/60 Hz Frequency, 50 kA Interrupt, 3RV1/S00 Frame, Thermal/Magnetic Trip, 3 Pole, Screw Connection, 1CO Auxiliary, 18 to 2 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -20 to 60 °C, 90 mm H x 45 mm W
IBT #00130112190
MFG #3RV1611-1DG14
Industry Part #7477690
