ShopIBT | Surge Protective Device, 120 VAC Electrical Rating, 50/60 Hz Frequency, 4 Pole, 5 Wires, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-N/L-G/N-G/L-L, <lt/>25 ns Response, 3 ph, Environmental Condition

Surge Protective Device, 120 VAC Electrical Rating, 50/60 Hz Frequency, 4 Pole, 5 Wires, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-N/L-G/N-G/L-L, <lt/>25 ns Response, 3 ph, Environmental Condition

Mersen ST2083PY

ST2083PY

Surge Protective Device, 120 VAC Electrical Rating, 50/60 Hz Frequency, 4 Pole, 5 Wires, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-N/L-G/N-G/L-L, <lt/>25 ns Response, 3 ph, Environmental Condition

Factory Order

MFG #ST2083PY

IBT #00418062627

Industry Part #J303033

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Dimensions: 3.58 in L x 2.7 in W x 2.8 in D
Electrical Ratings: 120 VAC
Enclosure Type: IP20
Environmental Conditions: -40 to 85 °C Operating Temperature, -40 to 85 °C Storage Temperature
Frequency Rating: 50/60 Hz
Material: Polyethylene Terephthalate
Modes of Protection: L-N/L-G/N-G/L-L
Mounting Type: DIN Rail
Nominal Discharge Current: 20 kA
Number of Poles: 4
Number of Wires: 5
Peak Surge Current: 50 kA
Phase: 3 ph
Response Time: <lt/>25 ns
Series: ST Series
Short Circuit Current Rating: 200 kA
Terminal Type: Box
Width: 2.8

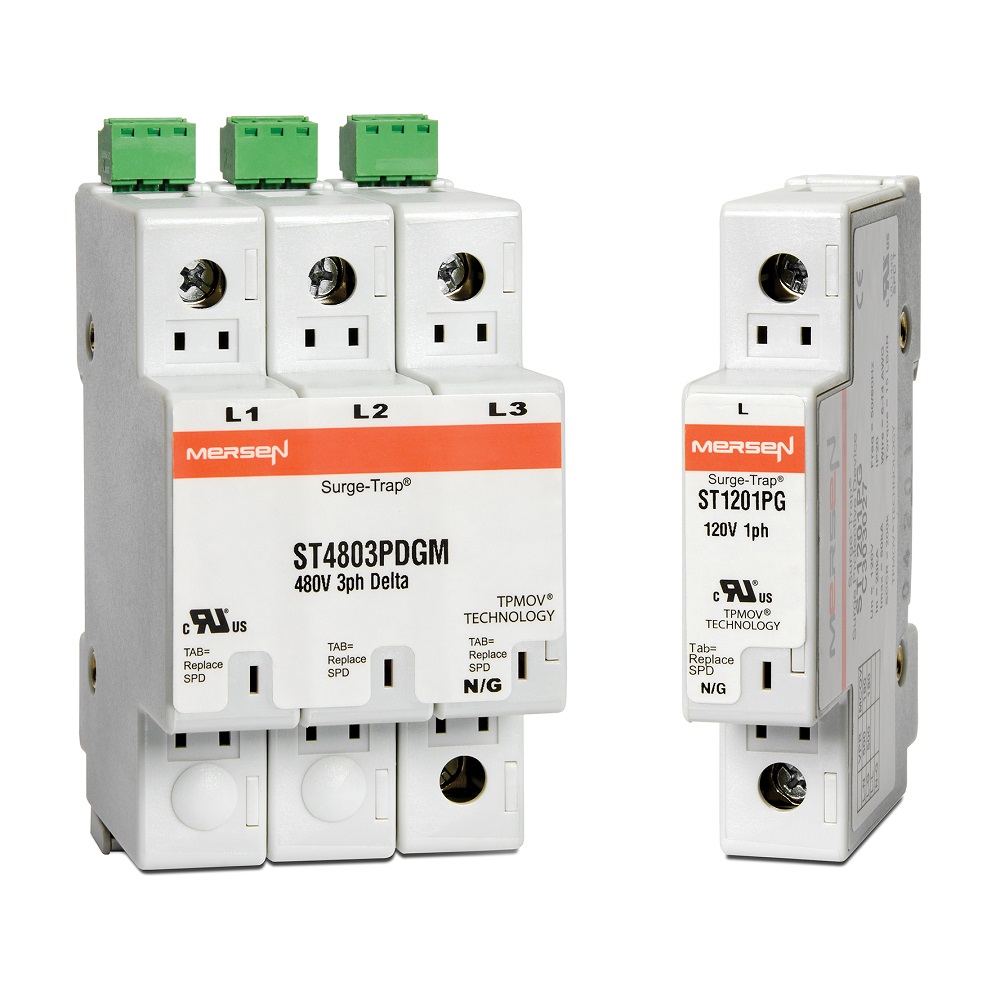

: Surge-Trap® modular surge protective device (SPD) is a no fuse, fail safe surge suppressor featuring MERSEN's patented TPMOV® technology inside. UL 1449 4th Edition approved, it is DIN rail mountable featuring a fail safe self-protected design, visual indicator, and a small footprint. A remote indicator option provides status to critical control circuitry. The Surge-Trap modular SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices. Mersen Surge-Trap® Surge Protective Device, Series: ST Series, 120 VAC Electrical Rating, 50/60 Hz Frequency, 4 Pole, 5 Wires, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-N/L-G/N-G/L-L, 25 ns Response, 3 ph, Environmental Conditions: -40 to 85 °C Operating Temperature, -40 to 85 °C Storage Temperature, IP20 Enclosure, DIN Rail Mounting, Box Terminal, Polyethylene Terephthalate, 3.58 in L x 2.7 in W x 2.8 in D Dimensions

$0.00Each

QTYQTY
