ShopIBT | Fork Meter, Heavy Duty Digital, 200 A, 1000 VAC/VDC Electrical Rating, 40 mOhm Resistance, 50/60 Hz Frequency, 5/8 in Jaw, 4000 Count, High Contrast White on Black LCD Display, True RMS AC Response, +/-2% +/-5 Digits AC Current Accuracy, Safety Ratin

2205-20

Fork Meter, Heavy Duty Digital, 200 A, 1000 VAC/VDC Electrical Rating, 40 mOhm Resistance, 50/60 Hz Frequency, 5/8 in Jaw, 4000 Count, High Contrast White on Black LCD Display, True RMS AC Response, +/-2% +/-5 Digits AC Current Accuracy, Safety Ratin

Factory Order

MFG #2205-20

IBT #91772000734

Industry Part #10810993

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: AC Current Accuracy: +/-2% +/-5 Digits
AC Response: True RMS
Color: Black/Red
Counts: 4000
Dimensions: 8 in L
Display Type: High Contrast White on Black LCD
Electrical Ratings: 200 A, 1000 VAC/VDC
Frequency Rating: 50/60 Hz
Jaw Capacity: 5/8 Inch
Operating Temperature: 14 to 122 °F
Power Source: AA Alkaline Battery
Resistance: 40 MOhm
Safety Rating: CAT IV 600 V, CAT III 1000 V
Type: Heavy Duty Digital
Width: 7.48

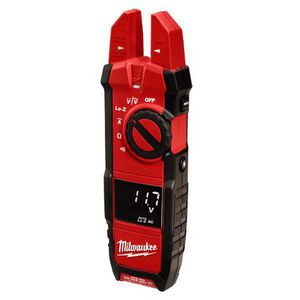

: The Milwaukee® fork meter is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2205-20 is four tools in one providing current measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63 in fork opening, high 200 A current range and a high contrast white-on-black display. Milwaukee® Fork Meter, Heavy Duty Digital, 200 A, 1000 VAC/VDC Electrical Rating, 40 mOhm Resistance, 50/60 Hz Frequency, 5/8 in Jaw, 4000 Count, High Contrast White on Black LCD Display, True RMS AC Response, +/-2% +/-5 Digits AC Current Accuracy, Safety Rating: CAT IV 600 V, CAT III 1000 V, AA Alkaline Battery Power Source, 14 to 122 °F Operating, 8 in L Dimensions, Black/Red
