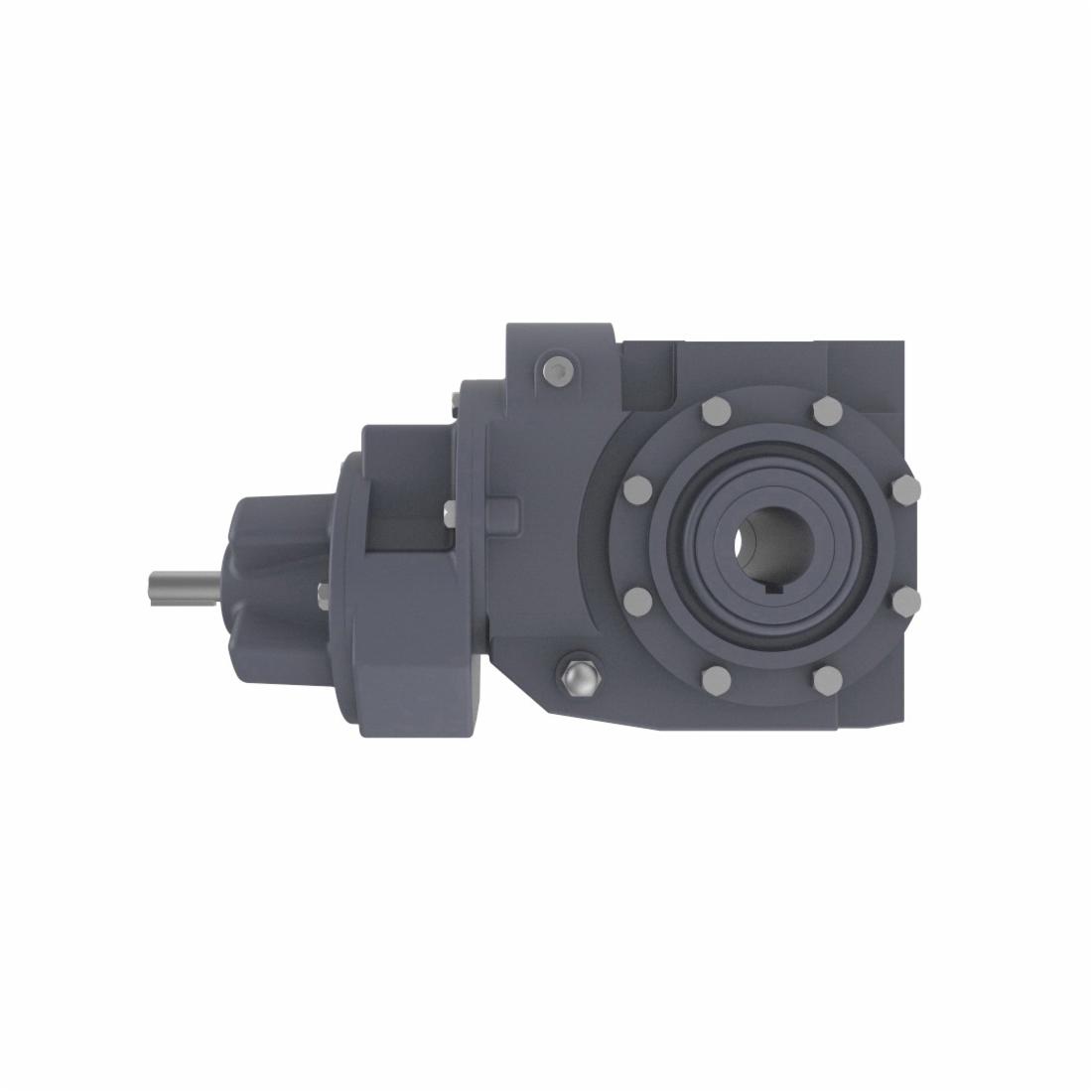

ShopIBT | Right Angle Helical Worm Gear Drive, 500:1 Gear Ratio, 0.46 HP Input/0.33 HP Motor, Non-Flange Solid Projecting Shaft Input, Hollow Shaft Output, 5/8 Inch Input, 1-3/8 Inch Output, 3.5 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 5146 in-lb, 0.87 Inch Centre Distance, 62 % Efficiency, Right Hand, No Base Mount, Cast Iron

S853BR-500K-M1

Right Angle Helical Worm Gear Drive, 500:1 Gear Ratio, 0.46 HP Input/0.33 HP Motor, Non-Flange Solid Projecting Shaft Input, Hollow Shaft Output, 5/8 Inch Input, 1-3/8 Inch Output, 3.5 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 5146 in-lb, 0.87 Inch Centre Distance, 62 % Efficiency, Right Hand, No Base Mount, Cast Iron

Factory Order

MFG #S853BR-500K-M1

IBT #00190033510

Industry Part #30268223

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Centre Distance: 0.87 Inch
Dimensions: 14.53 in L x 5.52 in W x 7.82 in H
Efficiency: 62 %
Finish: Standard Gray Painted
Gear Ratio: 500:1
Horsepower: 0.46 hp Input/0.33 hp Motor
Input Maximum Speed: 1750 rpm
Input Size: 5/8 Inch
Input Type: Non-Flange Solid Projecting Shaft Input
Lubrication Type: Klubersynth UH1 6-460
Material: Cast Iron
Mounting Type: No Base
Output Maximum Speed: 3.5 rpm
Output Size: 1-3/8 Inch
Output Type: Hollow Shaft
Rotation Type: Right Hand
Series: 800BR
Torque Rating: 5146 in-lb
Type: Heavy-Duty Triple Reduction

: Boston Gear®'s 800BR series helical worm gear drives are heavy duty helical gear drives with long life performance features and simplified maintenance. The 800BR series comes in double and triple reduction ratios from 8:1 through 900:1 and a maximum 10 HP rating. Boston Gear® Right Angle Helical Worm Gear Drive, Heavy-Duty Triple Reduction, Series: 800BR, 500:1 Gear Ratio, 0.46 HP Input/0.33 HP Motor, Non-Flange Solid Projecting Shaft Input Input, Hollow Shaft Output, 5/8 in Input, 1-3/8 in Output, 3.5 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 5146 in-lb, 0.87 in Centre Distance, 62 % Efficiency, Right Hand, Klubersynth UH1 6-460 Lubrication, No Base Mount, Cast Iron, Standard Gray Painted, 14.53 in L x 5.52 in W x 7.82 in H

: WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects and/or reproductive hazards. For more information go to www.P65Warnings.ca.gov

$2,567.73Each
