ShopIBT | Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 300PCX, 50:1 Gear Ratio, 1.92 HP Input, C-Face Quill Input, Hollow Bore Output, 7/8 Inch Diameter Input, 1-3/4 Inch Diameter Output, 35 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 2389 in-lb Output, 3 Inch Centre Distance, 69.2 % Efficiency, Cast Iron

0230-09621

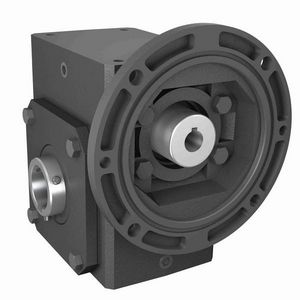

Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 300PCX, 50:1 Gear Ratio, 1.92 HP Input, C-Face Quill Input, Hollow Bore Output, 7/8 Inch Diameter Input, 1-3/4 Inch Diameter Output, 35 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 2389 in-lb Output, 3 Inch Centre Distance, 69.2 % Efficiency, Cast Iron

Factory Order

MFG #0230-09621

IBT #00440088200

Industry Part #305 50/1 A WR 143TC 1.750

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Centre Distance: 3 Inch
Dimensions: 7-1/2 in W
Efficiency: 69.2 %
Gear Ratio: 50:1
Horsepower: 1.92 hp Input
Input Maximum Speed: 1750 rpm
Input Size: 7/8 in Dia
Input Type: C-Face Quill
Lubrication Type: Conventional Oil
Material: Cast Iron
Output Maximum Speed: 35 rpm
Output Size: 1-3/4 in Dia
Output Type: Hollow Bore
Series: 300PCX
Torque Rating: 2389 in-lb Output
Type: Right Angle Single Reduction Style A
Width: 12.25

: Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 300PCX, 50:1 Gear Ratio, 1.92 HP Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 1-3/4 in Dia Output, 35 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 2389 in-lb Output, 3 in Centre Distance, 69.2 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7-1/2 in W
