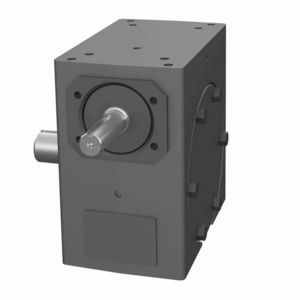

ShopIBT | Worm Gear Reducer, 80:1 Gear Ratio, 0.67 HP Input, Shaft Input, Shaft Output, 0.75 Inch Diameter x 2.38 Inch Length Input, 1-1/4 Inch Diameter x 2-1/4 Inch Length Output, 21.9 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 1212 in-lb Output, 2.63 Inch Centre Distance, 3/16 x 3/32 Inch Input, 62.7 % Efficiency, Cast Iron

0230-06973

Worm Gear Reducer, 80:1 Gear Ratio, 0.67 HP Input, Shaft Input, Shaft Output, 0.75 Inch Diameter x 2.38 Inch Length Input, 1-1/4 Inch Diameter x 2-1/4 Inch Length Output, 21.9 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 1212 in-lb Output, 2.63 Inch Centre Distance, 3/16 x 3/32 Inch Input, 62.7 % Efficiency, Cast Iron

Factory Order

MFG #0230-06973

IBT #00440094512

Industry Part #261 80/1 B WR

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Centre Distance: 2.63 Inch
Dimensions: 7.438 in H
Efficiency: 62.7 %
Gear Ratio: 80:1
Horsepower: 0.67 hp Input
Input Maximum Speed: 1750 rpm
Input Size: 0.75 in Dia x 2.38 in L
Input Type: Shaft
Keyway Size: 3/16 x 3/32 in Input, 1/4 x 1/8 in Output
Lubrication Type: Conventional Oil
Material: Cast Iron
Output Maximum Speed: 21.9 rpm
Output Size: 1-1/4 in Dia x 2-1/4 in L
Output Type: Shaft
Series: 260PCX
Torque Rating: 1212 in-lb Output
Type: Right Angle Single Reduction Style B
Width: 10

: Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style B, Series: 260PCX, 80:1 Gear Ratio, 0.67 HP Input, Shaft Input, Shaft Output, 0.75 in Dia x 2.38 in L Input, 1-1/4 in Dia x 2-1/4 in L Output, 21.9 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 1212 in-lb Output, 2.63 in Centre Distance, 3/16 x 3/32 in Input, 1/4 x 1/8 in Output Keyway, 62.7 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7.438 in H
