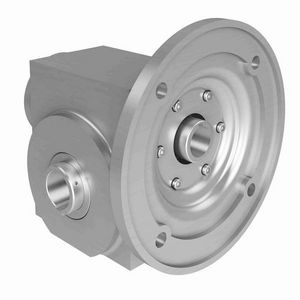

ShopIBT | Worm Gear Reducer, 50:1 Gear Ratio, 1.137 HP Input, C-Face Quill Input, Hollow Bore Output, 1-1/8 Inch Diameter Input, 1-1/2 Inch Diameter Output, 35 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 1432 in-lb Output, 2.38 Inch Centre Distance, 3/16 x 3/32 Inch Input, 69.9 % Efficiency, 316 Stainless Steel, Polished

0270-09136

Worm Gear Reducer, 50:1 Gear Ratio, 1.137 HP Input, C-Face Quill Input, Hollow Bore Output, 1-1/8 Inch Diameter Input, 1-1/2 Inch Diameter Output, 35 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 1432 in-lb Output, 2.38 Inch Centre Distance, 3/16 x 3/32 Inch Input, 69.9 % Efficiency, 316 Stainless Steel, Polished

Factory Order

MFG #0270-09136

IBT #00440120006

Industry Part #SSW245 50/1 B WR 182TC 1.500

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Centre Distance: 2.38 Inch
Efficiency: 69.9 %
Finish: Polished
Gear Ratio: 50:1
Horsepower: 1.137 hp Input
Input Maximum Speed: 1750 rpm
Input Size: 1-1/8 in Dia
Input Type: C-Face Quill
Keyway Size: 3/16 x 3/32 in Input, 1/4 x 1/8 in Output
Lubrication Type: PAG Synthetic Oil
Material: 316 Stainless Steel
Output Maximum Speed: 35 rpm
Output Size: 1-1/2 in Dia
Output Type: Hollow Bore
Series: SSW240
Torque Rating: 1432 in-lb Output
Type: Right Angle Single Reduction Style B
Width: 9

: Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications. Hub City® CleanLine™ Hub3® Worm Gear Reducer, Right Angle Single Reduction Style B, Series: SSW240, 50:1 Gear Ratio, 1.137 HP Input, C-Face Quill Input, Hollow Bore Output, 1-1/8 in Dia Input, 1-1/2 in Dia Output, 35 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 1432 in-lb Output, 2.38 in Centre Distance, 3/16 x 3/32 in Input, 1/4 x 1/8 in Output Keyway, 69.9 % Efficiency, PAG Synthetic Oil Lubrication, 316 Stainless Steel, Polished
