ShopIBT | Worm Gear Reducer, 50:1 Gear Ratio, 2.462 HP Input, C-Face Quill Input, Shaft Output, 5/8 Inch Diameter Input, 1.5 Inch Diameter x 4.04 Inch Length Output, 35 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 3315 in-lb Output, 3-1/4 Inch Centre Distance, 3/16 x 3/32 Inch Input, 74.8 % Efficiency, 316 Stainless Steel, Polished

0270-09158

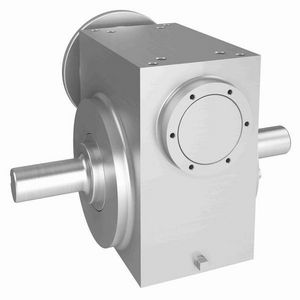

Worm Gear Reducer, 50:1 Gear Ratio, 2.462 HP Input, C-Face Quill Input, Shaft Output, 5/8 Inch Diameter Input, 1.5 Inch Diameter x 4.04 Inch Length Output, 35 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 3315 in-lb Output, 3-1/4 Inch Centre Distance, 3/16 x 3/32 Inch Input, 74.8 % Efficiency, 316 Stainless Steel, Polished

Factory Order

MFG #0270-09158

IBT #00440120042

Industry Part #SSW324 50/1 A WR 56C

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Centre Distance: 3-1/4 Inch
Dimensions: 14.12 in W
Efficiency: 74.8 %
Finish: Polished
Gear Ratio: 50:1
Horsepower: 2.462 hp Input
Input Maximum Speed: 1750 rpm
Input Size: 5/8 in Dia
Input Type: C-Face Quill
Keyway Size: 3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type: PAG Synthetic Oil
Material: 316 Stainless Steel
Output Maximum Speed: 35 rpm
Output Size: 1.5 in Dia x 4.04 in L
Output Type: Shaft
Series: SSW320
Torque Rating: 3315 in-lb Output
Type: Right Angle Single Reduction Style A
Width: 15

: Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications. Hub City® CleanLine™ Hub3® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: SSW320, 50:1 Gear Ratio, 2.462 HP Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 1.5 in Dia x 4.04 in L Output, 35 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 3315 in-lb Output, 3-1/4 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, 74.8 % Efficiency, PAG Synthetic Oil Lubrication, 316 Stainless Steel, Polished, 14.12 in W
