NA22/8.2RS.DZ

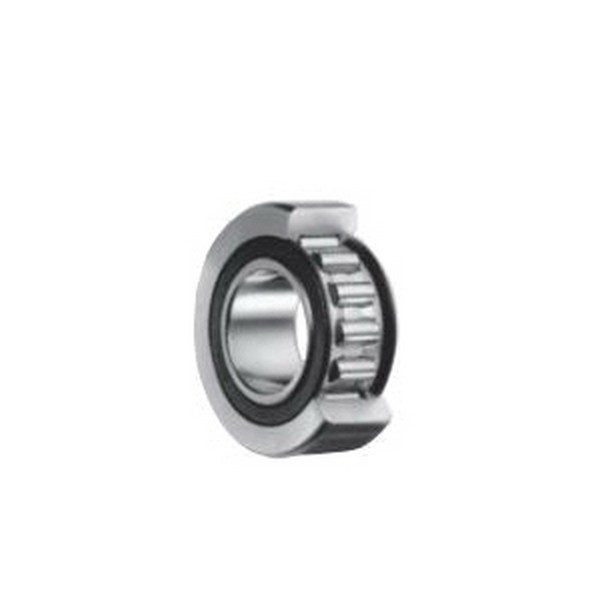

Yoke Track Roller, Cylindrical OD, Series: NA22, 8 mm Bore, 24 mm Roller Diameter, 11.8 mm Roller Width, 12 mm Overall Width, 5.31 kN Load, Double Seal Closure, 11000 rpm Grease Maximum, -25 to 225 deg F, Steel Roller
Factory Order
MFG #NA22/8.2RS.DZ
IBT #00496506074
- Bore Diameter: 8 mmClosure Type: Double SealLoad Capacity: 5.31 kNMaximum Speed: 11000 rpm GreaseOverall Width: 12 mmRoller Diameter: 24 mmRoller Material: SteelRoller Width: 11.8 mmSeries: NA22Temperature Rating: -25 to 225 °FType: Cylindrical OD
- Track rollers (also known as cam followers) are characterized by their thick walled outer rings that run directly on a track. The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses. Sealed designs with internal thrust washers help extend service life under conditions of infrequent lubrication. Koyo Yoke Track Roller, Cylindrical OD, Series: NA22, 8 mm Bore, 24 mm Roller Diameter, 11.8 mm Roller Width, 12 mm Overall Width, 5.31 kN Load, Double Seal Closure, 11000 RPM Grease Maximum, -25 to 225 °F, Steel Roller
Koyo NA22/8.2RS.DZYoke Track Roller, Cylindrical OD, Series: NA22, 8 mm Bore, 24 mm Roller Diameter, 11.8 mm Roller Width, 12 mm Overall Width, 5.31 kN Load, Double Seal Closure, 11000 rpm Grease Maximum, -25 to 225 deg F, Steel Roller
IBT #00496506074
MFG #NA22/8.2RS.DZ
