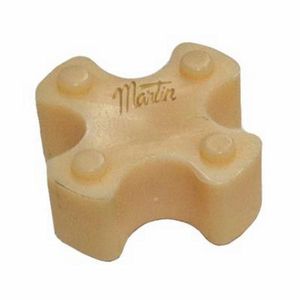

ShopIBT | Jaw Coupling Spider, One-Piece, Series: SHL, 099 Coupling, 0.725 Inch Length, 1/2 to 1-3/8 Inch Inside Diameter, 2.531 Inch Outside Diameter, Curved Jaw, 0.81 (MS)/1248.66 (ML) in-lb Torque, 3600 RPM Maximum, 6 Bolts, For Use With: ML and MS Series Flexible Jaw Coupling, -65 to 275 °F , Hytrel®

SHL099/100

Jaw Coupling Spider, One-Piece, Series: SHL, 099 Coupling, 0.725 Inch Length, 1/2 to 1-3/8 Inch Inside Diameter, 2.531 Inch Outside Diameter, Curved Jaw, 0.81 (MS)/1248.66 (ML) in-lb Torque, 3600 RPM Maximum, 6 Bolts, For Use With: ML and MS Series Flexible Jaw Coupling, -65 to 275 °F , Hytrel®

Factory Order

MFG #SHL099/100

IBT #00568018509

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Coupling Size: 099
Inside Diameter: 1/2 to 1-3/8 Inch
Jaw Type: Curved
Material: Hytrel®
Maximum Speed: 3600 RPM
Number of Bolts: 6
Outside Diameter: 2.531 Inch
Series: SHL
Suitable For Use With: ML and MS Series Flexible Jaw Coupling
Temperature Rating: -65 to 275 °F
Torque Rating: 0.81 (MS)/1248.66 (ML) in-lb
Type: One-Piece
Width: 0.54

: Martin offers two complete lines of jaw couplings, one for greater horsepower and one for interchangeability. Features include no lubrication, easy installation, no metal to metal contact resistant to oil, dirt, sand, moisture, grease, easy inspection of load carrying spider, flexibility of angular or parallel misalignment of shafts by Buna-N spider member permits smooth power transmission. Buna rubber, Hytrel® and urethane spiders are stocked in all branches. Martin Jaw Coupling Spider, One-Piece, Series: SHL, 099 Coupling, 0.725 in Length, 1/2 to 1-3/8 in ID, 2.531 in OD, Curved Jaw, 0.81 (MS)/1248.66 (ML) in-lb Torque, 3600 RPM Maximum, 6 Bolts, For Use With: ML and MS Series Flexible Jaw Coupling, -65 to 275 °F, Hytrel®

$115.59Each
