S1020BS 1

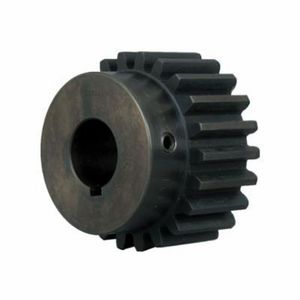

Stock Spur Gear, Bored-to-Size External Tooth, 1 Inch Bore Diameter, 2.2 Inch Outside Diameter, 20 Teeth, 10 Diametral Pitch, 2 Inch, 1 Inch Face Width, Type B, 1.719 Inch Hub Diameter, 5/8 Inch Hub Projection, 1-5/8 Inch Overall Length, 14.5° Pressure Angle, 1/4 x 1/8 Inch Keyway, Steel
MFG #S1020BS 1
IBT #00568019460
- Bore Diameter: 1 InchDiametral Pitch: 10Face Width: 1 InchHub Diameter: 1.719 InchHub Projection: 5/8 InchHub Type: Type BKeyway Size: 1/4 x 1/8 InchMaterial: SteelNumber of Teeth: 20Outside Diameter: 2.2 InchOverall Length: 1-5/8 InchPitch Diameter: 2 InchPressure Angle: 14.5 degType: Bored-to-Size External ToothWidth: 2.2
- Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles. Martin Stock Spur Gear, Bored-to-Size External Tooth, 1 in Bore Dia, 2.2 in Outside Dia, 20 Teeth, 10 Diametral Pitch, 2 in, 1 in Face Width, Type B, 1.719 in Hub Dia, 5/8 in Hub Projection, 1-5/8 in Overall Length, 14.5 deg Pressure Angle, 1/4 x 1/8 in Keyway, Steel
Martin Sprocket & Gear S1020BS 1Stock Spur Gear, Bored-to-Size External Tooth, 1 Inch Bore Diameter, 2.2 Inch Outside Diameter, 20 Teeth, 10 Diametral Pitch, 2 Inch, 1 Inch Face Width, Type B, 1.719 Inch Hub Diameter, 5/8 Inch Hub Projection, 1-5/8 Inch Overall Length, 14.5° Pressure Angle, 1/4 x 1/8 Inch Keyway, Steel
IBT #00568019460
MFG #S1020BS 1
