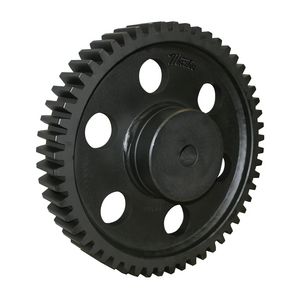

ShopIBT | Stock Spur Gear, Reboreable, 1-3/8 to 3-3/4 in Bore Dia, 24-1/2 in Outside Dia, 96 Teeth, 4 Diametral Pitch, 24 in, 2 in Face Width, Type B, 6-1/16 in Hub Dia, 1-3/4 in Hub Projection, 3-3/4 in Overall Length, 14.5 deg Pressure Angle, Steel

S496

Stock Spur Gear, Reboreable, 1-3/8 to 3-3/4 in Bore Dia, 24-1/2 in Outside Dia, 96 Teeth, 4 Diametral Pitch, 24 in, 2 in Face Width, Type B, 6-1/16 in Hub Dia, 1-3/4 in Hub Projection, 3-3/4 in Overall Length, 14.5 deg Pressure Angle, Steel

Factory Order

MFG #S496

IBT #00568020534

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Bore Diameter: 1-3/8 to 3-3/4 Inch
Diametral Pitch: 4
Face Width: 2 Inch
Hub Diameter: 6-1/16 Inch
Hub Projection: 1-3/4 Inch
Hub Type: Type B
Material: Steel
Number of Teeth: 96
Outside Diameter: 24-1/2 Inch
Overall Length: 3-3/4 Inch
Pitch Diameter: 24 Inch
Pressure Angle: 14.5 deg
Type: Reboreable
Width: 24.5

: Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles. Martin Stock Spur Gear, Reboreable, 1-3/8 to 3-3/4 in Bore Dia, 24-1/2 in Outside Dia, 96 Teeth, 4 Diametral Pitch, 24 in, 2 in Face Width, Type B, 6-1/16 in Hub Dia, 1-3/4 in Hub Projection, 3-3/4 in Overall Length, 14.5 deg Pressure Angle, Steel
