ShopIBT | Stock Spur Gear, External Tooth Reborable, 1.063 to 1.313 in Bore Dia, 3.2 in Outside Dia, 14 Teeth, 5 Diametral Pitch, 2.8 in, 1-3/4 in Face Width, Type B, 2.188 in Hub Dia, 7/8 in Hub Projection, 2-5/8 in Overall Length, 14.5 deg Pressure Angle, St

S514

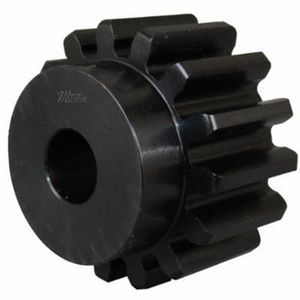

Stock Spur Gear, External Tooth Reborable, 1.063 to 1.313 in Bore Dia, 3.2 in Outside Dia, 14 Teeth, 5 Diametral Pitch, 2.8 in, 1-3/4 in Face Width, Type B, 2.188 in Hub Dia, 7/8 in Hub Projection, 2-5/8 in Overall Length, 14.5 deg Pressure Angle, St

Factory Order

MFG #S514

IBT #00568020555

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Bore Diameter: 1.063 to 1.313 Inch
Diametral Pitch: 5
Face Width: 1-3/4 Inch
Hub Diameter: 2.188 Inch
Hub Projection: 7/8 Inch
Hub Type: Type B
Material: Steel
Number of Teeth: 14
Outside Diameter: 3.2 Inch
Overall Length: 2-5/8 Inch
Pitch Diameter: 2.8 Inch
Pressure Angle: 14.5 deg
Type: External Tooth Reborable
Width: 3.2

: Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles. Martin Stock Spur Gear, External Tooth Reborable, 1.063 to 1.313 in Bore Dia, 3.2 in Outside Dia, 14 Teeth, 5 Diametral Pitch, 2.8 in, 1-3/4 in Face Width, Type B, 2.188 in Hub Dia, 7/8 in Hub Projection, 2-5/8 in Overall Length, 14.5 deg Pressure Angle, Steel

$165.94Each
