TB40H100

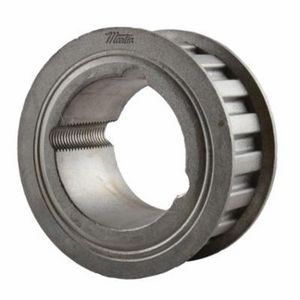

Stock Timing Pulley, Solid Type CF-1, TB Bushed Bore, 1/2 to 2-1/2 Inch Bore Diameter, 6.312 Inch Outside Diameter, 6.366 Inch, 40 Grooves, 1/2 Inch Pitch, 1.063 Inch Face Width, 6.595 Inch Flange Diameter, 4-7/16 Inch Hub Diameter, 2517 Bushing, 1-3/4 Inch Overall Length, For Use With: 1 Inch Width Type H Belt, Cast Iron
Factory Order
MFG #TB40H100
IBT #00568021218
- Bore Diameter:Â 1/2 to 2-1/2 InchBore Type:Â TB BushedBushing Type:Â 2517Face Width:Â 1.063 InchFlange Diameter:Â 6.595 InchHub Diameter:Â 4-7/16 InchMaterial:Â Cast IronNumber of Grooves:Â 40Outside Diameter:Â 6.312 InchOverall Length:Â 1-3/4 InchPitch:Â 1/2 InchPitch Diameter:Â 6.366 InchSuitable For Use With:Â 1 in W Type H BeltType:Â Solid Type CF-1Width:Â 7.31
- Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket. Martin Stock Timing Pulley, Solid Type CF-1, TB Bushed Bore, 1/2 to 2-1/2 in Bore Dia, 6.312 in Outside Dia, 6.366 in, 40 Grooves, 1/2 in Pitch, 1.063 in Face Width, 6.595 in Flange Dia, 4-7/16 in Hub Dia, 2517 Bushing, 1-3/4 in Overall Length, For Use With: 1 in W Type H Belt, Cast Iron
Martin Sprocket & Gear TB40H100Stock Timing Pulley, Solid Type CF-1, TB Bushed Bore, 1/2 to 2-1/2 Inch Bore Diameter, 6.312 Inch Outside Diameter, 6.366 Inch, 40 Grooves, 1/2 Inch Pitch, 1.063 Inch Face Width, 6.595 Inch Flange Diameter, 4-7/16 Inch Hub Diameter, 2517 Bushing, 1-3/4 Inch Overall Length, For Use With: 1 Inch Width Type H Belt, Cast Iron
IBT #00568021218
MFG #TB40H100
