4 8V 5300 M

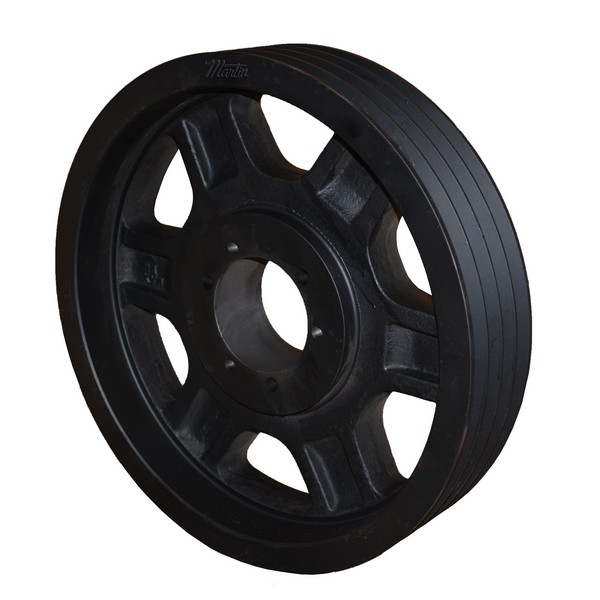

Wedge Sheave, Type C Arm/Spoke, Bushed Bore, 2 to 4-3/4 in Bore, 53 in OD, 52.8 in Pitch Diameter, 4 Grooves, 4-7/8 in Face Width, QD® M Bushing, 6-3/4 in Overall Length, For Use With: 8V Cross Section Belt, Cast Iron
Factory Order
MFG #4 8V 5300 M
IBT #00568044027
- Bore Diameter: 2 to 4-3/4 InchBore Type: BushedBushing Type: QD® MFace Width: 4-7/8 InchMaterial: Cast IronNumber of Grooves: 4Outside Diameter: 53 InchOverall Length: 6-3/4 InchPitch Diameter: 52.8 InchSuitable For Use With: 8V Cross Section BeltType: Type C Arm/SpokeWidth: 53
- Hi-Cap® sheaves (narrow v-belts) are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-Belt sheaves to run with 3V, 5V, and 8V belts. Martin Hi-Cap® Wedge Sheave, Type C Arm/Spoke, Bushed Bore, 2 to 4-3/4 in Bore, 53 in OD, 52.8 in Pitch Diameter, 4 Grooves, 4-7/8 in Face Width, QD® M Bushing, 6-3/4 in Overall Length, For Use With: 8V Cross Section Belt, Cast Iron
Martin Sprocket & Gear 4 8V 5300 MWedge Sheave, Type C Arm/Spoke, Bushed Bore, 2 to 4-3/4 in Bore, 53 in OD, 52.8 in Pitch Diameter, 4 Grooves, 4-7/8 in Face Width, QD® M Bushing, 6-3/4 in Overall Length, For Use With: 8V Cross Section Belt, Cast Iron
IBT #00568044027
MFG #4 8V 5300 M
