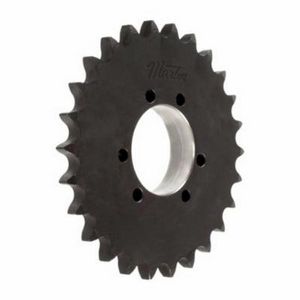

80SF30H

Single Pitch Roller Chain Sprocket, QD Bushed Type B, 10.114 Inch Outside Diameter, #80 Chain, 30 Teeth, 1 Inch Pitch, 9.567 Inch, 4-3/4 Inch Hub Diameter, 2-1/16 Inch Length Through Bore, Type SF QD® Bushing, Steel

Factory Order

MFG #80SF30H

IBT #00568062237

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Bushing Type: Type SF QD®
Chain Size: #80
Hub Diameter: 4-3/4 Inch
Length Through Bore: 2-1/16 Inch
Material: Steel
Number of Teeth: 30
Outside Diameter: 10.114 Inch
Pitch: 1 Inch
Pitch Diameter: 9.567 Inch
Type: QD Bushed Type B
Width: 10.11

: Martin Saber Tooth® sprockets have hardened teeth, which provide longer chain and sprocket life. The hardened teeth on the smaller sprocket of a roller chain drive are recommended if the drive ratio is four to one or greater if the smaller sprocket has 24 teeth or less and is running at a speed of over 600 RPM. Martin Saber Tooth® Single Pitch Roller Chain Sprocket, QD Bushed Type B, 10.114 in Outside Dia, #80 Chain, 30 Teeth, 1 in Pitch, 9.567 in, 4-3/4 in Hub Dia, 2-1/16 in Length Through Bore, Type SF QD® Bushing, Steel

$304.36Each
