Martin Sprocket & Gear

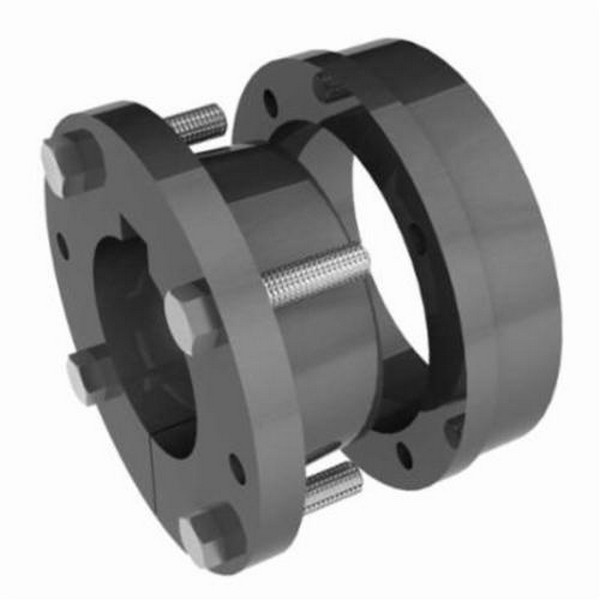

XT Bushing, 1-15/16 In Bore, 5-5/16 In OD, 5.94 In Hub, 2-1/16 In Overall Length, Cast Iron

IBT Part#: 00568064010
MFG Part#: MXT30 1 15/16
$93.39 / Each
http://schema.org/InStock
/Product/00568064010
XT Bushing, 1-15/16 In Bore, 5-5/16 In OD, 5.94 In Hub, 2-1/16 In Overall Length, Cast Iron
  • Bore Diameter: 1-15/16 Inch
  • Overall Length: 2-1/16 Inch
  • Flange Thickness: 11/16 Inch
  • Hub Diameter: 5.94 Inch
  • Keyway Size: 1/2 x 1/4 Inch
  • Barrel Diameter: 3-7/8 Inch
  • Bolt Circle Diameter: 4-9/16 Inch
  • Material: Cast Iron
  • Number of Bolt Holes: 4
  • Screw Size: 7/16 x 1-1/2 Inch
  • Suitable For Use With: MXTH-30 XT Hub
XT Bushing, 1-15/16 In Bore, 5-5/16 In OD, 5.94 In Hub, 2-1/16 In Overall Length, Cast Iron
