ShopIBT | XT Bushing, MXT30, Series: MXT®, 2-3/4 in Bore Dia, 5.94 in Hub Dia, 4-9/16 in Bolt Circle Dia, 5-5/16 in Outside Dia, 11/16 in Flange Thickness, 4 Bolt Holes, 7/16 x 1-1/2 in Screw, For Use With: MXTH-30 XT Hub, 2-1/16 in Overall Length, Cast Iron

MXT30 2 3/4

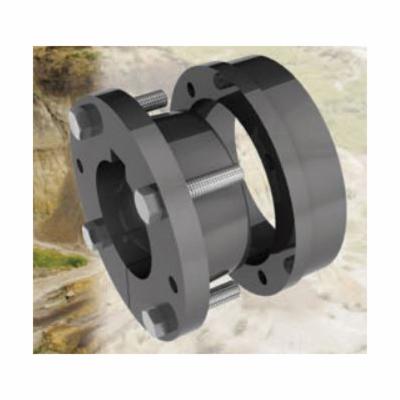

XT Bushing, MXT30, Series: MXT®, 2-3/4 in Bore Dia, 5.94 in Hub Dia, 4-9/16 in Bolt Circle Dia, 5-5/16 in Outside Dia, 11/16 in Flange Thickness, 4 Bolt Holes, 7/16 x 1-1/2 in Screw, For Use With: MXTH-30 XT Hub, 2-1/16 in Overall Length, Cast Iron

Factory Order

MFG #MXT30 2 3/4

IBT #00568079454

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Barrel Diameter: 3-7/8 Inch
Bolt Circle Diameter: 4-9/16 Inch
Bore Diameter: 2-3/4 Inch
Flange Thickness: 11/16 Inch
Hub Diameter: 5.94 Inch
Material: Cast Iron
Number of Bolt Holes: 4
Overall Length: 2-1/16 Inch
Screw Size: 7/16 x 1-1/2 Inch
Suitable For Use With: MXTH-30 XT Hub

: Martin's MXT® bushings are available from stock to fit all popular pulley sizes. Martin stocks MXT® bushings in a wide range of bore sizes per hub. The MXT® bushing offers a 2 in/ft taper, which reduces end disc pre-stressing, as well as increasing clamping force. All bushings size 50 and larger feature full depth keys. Martin MXT® Conveyor Bushing, 2-3/4 in Bore Dia, 3-7/8 in Barrel Dia, 5.94 in Hub Dia, 4-9/16 in Bolt Circle, 11/16 in Flange Thickness, 4 Bolt Holes, 7/16 x 1-1/2 in Screw, For Use With: MXTH-30 XT Hub, 2-1/16 in Overall Length, Cast Iron
