4 5V 710 Q

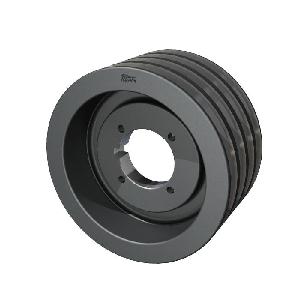

Wedge Sheave, Type J Web, Bushed Bore, 0.75 to 2.688 in Bore, 7.1 in OD, 7 in Pitch Diameter, 4 Grooves, 3.062 in Face Width, MST® Q1 Bushing, For Use With: 5V Cross Section Belts, Cast Iron
Factory Order
MFG #4 5V 710 Q
IBT #00568090744
- Bore Diameter: 0.75 to 2.688 InchBore Type: BushedBushing Type: MST® Q1Face Width: 3.062 InchMaterial: Cast IronNumber of Grooves: 4Outside Diameter: 7.1 InchPitch Diameter: 7 InchSuitable For Use With: 5V Cross Section BeltsType: Type J WebWidth: 7.1
- Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30000 lb tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 lb. Martin Hi-Cap® Wedge Sheave, Type J Web, Bushed Bore, 0.75 to 2.688 in Bore, 7.1 in OD, 7 in Pitch Diameter, 4 Grooves, 3.062 in Face Width, MST® Q1 Bushing, For Use With: 5V Cross Section Belts, Cast Iron
Martin Sprocket & Gear 4 5V 710 QWedge Sheave, Type J Web, Bushed Bore, 0.75 to 2.688 in Bore, 7.1 in OD, 7 in Pitch Diameter, 4 Grooves, 3.062 in Face Width, MST® Q1 Bushing, For Use With: 5V Cross Section Belts, Cast Iron
IBT #00568090744
MFG #4 5V 710 Q
