ShopIBT | Wedge Sheave, Type K Arm/Spoke, Bushed Bore, 2-3/8 to 5-1/2 in Bore, 40 in OD, 39.8 in Pitch Diameter, 6 Grooves, 7-1/8 in Face Width, MST® U0 Bushing, 7-1/8 in Overall Length, For Use With: 8V Cross Section Belts, Cast Iron

6 8V 4000 U

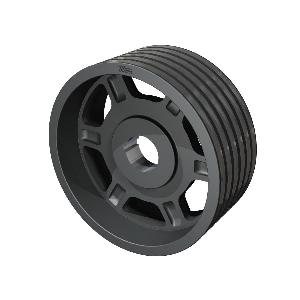

Wedge Sheave, Type K Arm/Spoke, Bushed Bore, 2-3/8 to 5-1/2 in Bore, 40 in OD, 39.8 in Pitch Diameter, 6 Grooves, 7-1/8 in Face Width, MST® U0 Bushing, 7-1/8 in Overall Length, For Use With: 8V Cross Section Belts, Cast Iron

Factory Order

MFG #6 8V 4000 U

IBT #00568091734

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Bore Diameter: 2-3/8 to 5-1/2 Inch
Bore Type: Bushed
Bushing Type: MST® U0
Face Width: 7-1/8 Inch
Material: Cast Iron
Number of Grooves: 6
Outside Diameter: 40 Inch
Overall Length: 7-1/8 Inch
Pitch Diameter: 39.8 Inch
Suitable For Use With: 8V Cross Section Belts
Type: Type K Arm/Spoke
Width: 40

: Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30000 lb tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 lb. Martin Hi-Cap® Wedge Sheave, Type K Arm/Spoke, Bushed Bore, 2-3/8 to 5-1/2 in Bore, 40 in OD, 39.8 in Pitch Diameter, 6 Grooves, 7-1/8 in Face Width, MST® U0 Bushing, 7-1/8 in Overall Length, For Use With: 8V Cross Section Belts, Cast Iron
