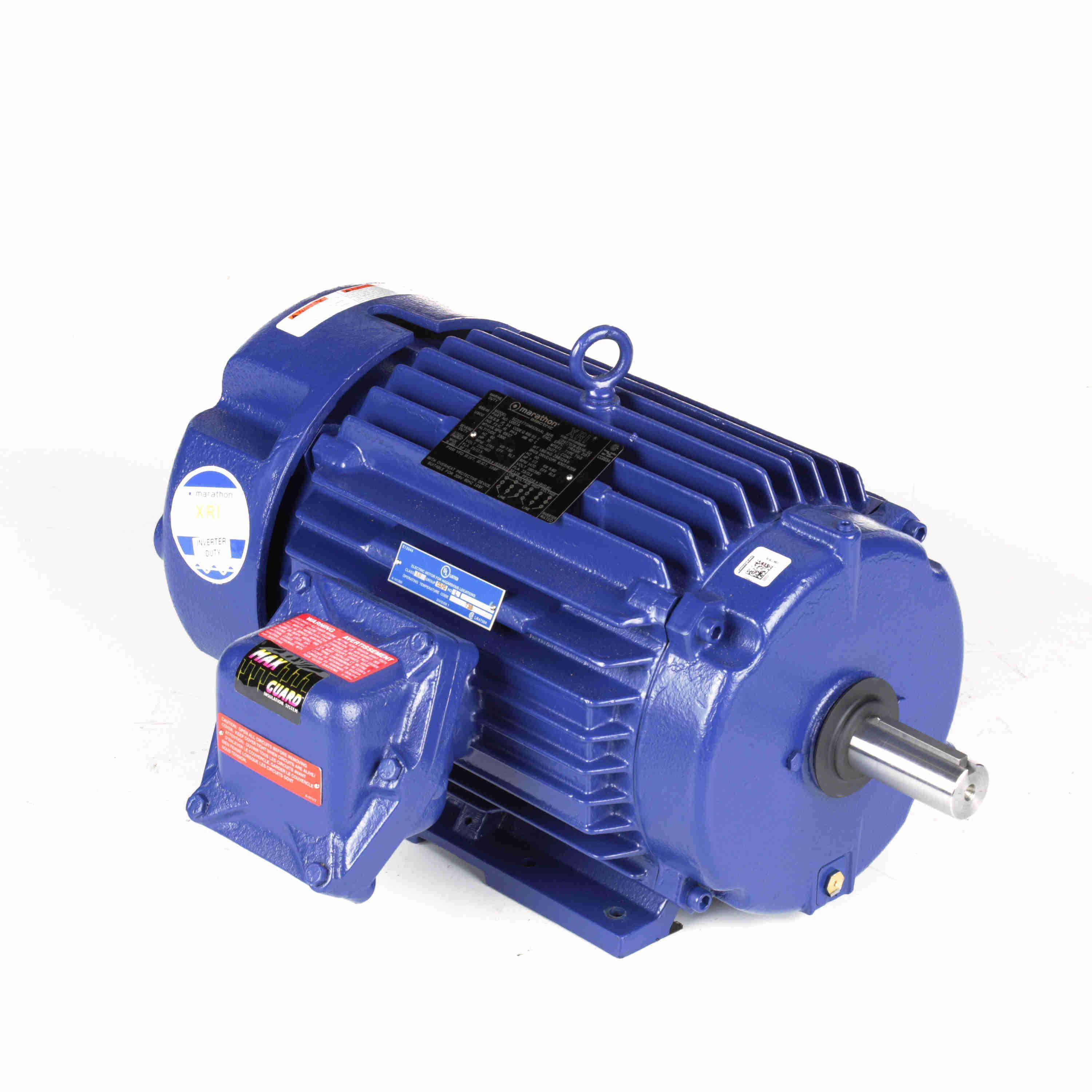

ShopIBT | AC Motor, 10 hp, 230/460 VAC, 26.6/13.3 A, 60 Hz Frequency, 3 ph. ph., 1765 rpm Speed, 1 Speed, IP54 EPFC Enclosure, 215T Frame, 1-3/8 in Dia x 3.38 in L Extension Shaft, Reversible Rotation, 1.15 Service Factor, Deep Groove Ball Bearing, 29.8 ft-lb

215TTGND6526

AC Motor, 10 hp, 230/460 VAC, 26.6/13.3 A, 60 Hz Frequency, 3 ph. ph., 1765 rpm Speed, 1 Speed, IP54 EPFC Enclosure, 215T Frame, 1-3/8 in Dia x 3.38 in L Extension Shaft, Reversible Rotation, 1.15 Service Factor, Deep Groove Ball Bearing, 29.8 ft-lb

Factory Order

MFG #215TTGND6526

IBT #00584000897

Industy Part #U007B

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Amperage Rating: 26.6/13.3 Amps
Application Type: Explosion-Proof Motors
Bearing Type: Deep Groove Ball
Constant Torque Speed Range: 10:1
Dimensions: 22.63 in L x 17 in W x 12.92 in H
Enclosure Type: IP54 EPFC
Frame: 215T
Frequency Rating: 60 Hz
Horsepower: 10 HP
Insulation Class: Class F
Material: Cast Iron
Mounting Type: Rigid Base
Number of Speeds: 1
Phase: 3 ph
Rotation: Reversible
Service Factor: 1.15
Shaft Size: 1-3/8 in Dia x 3.38 in L Extension
Special Features: Squirrel Cage Inverter Rated Motors
Speed: 1765 RPM
Torque Rating: 29.8 ft-lb Full Load
Type: 4-Pole Continuous-Duty Low Voltage
Variable Torque Speed Range: 10:1
Voltage Rating: 230/460 VAC
Width: 18

: Marathon® AC Motor, 4-Pole Continuous-Duty Low Voltage, Explosion-Proof Motors Application, Squirrel Cage Inverter Rated Motors Special Features, 10 HP, 230/460 VAC, 26.6/13.3 A, 60 Hz Frequency, 3 ph ph, 1765 RPM Speed, 1 Speed, IP54 EPFC Enclosure, 215T Frame, 1-3/8 in Dia x 3.38 in L Extension Shaft, Reversible Rotation, 1.15 Service Factor, Deep Groove Ball Bearing, 29.8 ft-lb Full Load Torque, Rigid Base Mounting, 40 °C, Insulation Class: Class F, Cast Iron, 10:1 Constant Torque Speed, 10:1 Variable Torque Speed, 22.63 in L x 17 in W x 12.92 in H Dimensions

$2,918.69Each
