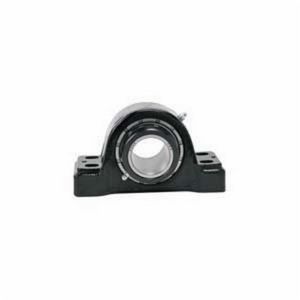

ZAS2203F
Pillow Block Spherical Roller Bearing Unit, 2-3/16 in Bore, 6-3/4 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 8-7/8 in Overall Length, 3-5/16 in Overall Width, 5 in Overall Height, Four-Bolt Base Mounting, Round Bore, 2-9/16 in
Factory Order
MFG #ZAS2203F
IBT #00715120036
Industry Part #10443321
- Rex® roller bearings are available in shaft sizes from 3/4 in through 7 in. Design improvements have increased load ratings and speed limits, combined with internal bearing design improvements. These features provide lower noise levels and are key performance factors that provide long bearing life. Rex® roller bearings allow for +/- 2 deg of dynamic misalignment to accommodate installation in accuracies or shaft deflection. A unique feature of Rex® bearing seals is that they are field replaceable and field upgradeable. Rex® roller bearings are available with a variety of seal choices, housing styles and shaft attachments to meet various application requirements. Rex® Pillow Block Spherical Roller Bearing Unit, Normal Duty Solid Housed, Series: 2000, 2-3/16 in Bore, 6-3/4 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 8-7/8 in Overall Length, 3-5/16 in Overall Width, 5 in Overall Height, Four-Bolt Base Mounting, Round Bore, 2-9/16 in Base Width, Single Set Screw Collar Locking Device, Clearance Seal, Expansion Expansion, 36370 lb Dynamic/44400 lb Static Load, 225 ˚F, 3650 RPM Maximum, Cast Iron, Powder Coated
Rexnord ZAS2203FPillow Block Spherical Roller Bearing Unit, 2-3/16 in Bore, 6-3/4 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 8-7/8 in Overall Length, 3-5/16 in Overall Width, 5 in Overall Height, Four-Bolt Base Mounting, Round Bore, 2-9/16 in
IBT #00715120036
MFG #ZAS2203F
Industry Part #10443321
