466100

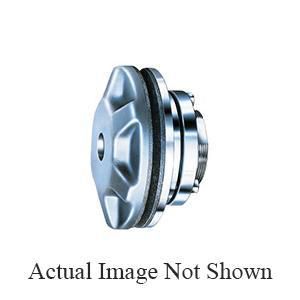

Torque Limiter, Series: TL Series, Straight Bore, 7/8 Inch Bore Diameter, 5 Inch Outside Diameter, 3 Inch Overall Length, 35 to 155 in-lb, 1000 RPM Maximum, 35 Stock/MTO (NO. 40 Chain), 35 Stock/MTO (NO. 41 Chain), 30 Stock/29 MTO (NO. 50 Chain), 25 Stock/MTO (NO. 60 Chain), 19 Stock/MTO (NO. 80 Chain) Minimum Sprocket Teeth
Factory Order
MFG #466100
IBT #00750034217
Industry Part #500A-1 TL MPB 7/8
- Bore Diameter: 7/8 InchBore Type: StraightMaximum Speed: 1000 RPMOutside Diameter: 5 InchOverall Length: 3 InchSeries: TL SeriesTorque Rating: 35 to 155 in-lb
- The Morse® torque limiter is a protective device that limits torque transmitted in a drive system by slipping when the torque demand exceeds a preset value as a result of shock loads, overloads or machine jams. It automatically re-engages when the overload torque has passed, no resetting is required. The Morse® torque limiter helps prevent machine damage and eliminates costly downtime. Using spring loaded friction surfaces for its operation, the Morse® torque limiter presets slip torque by adjustment of the spring force. This device can be used with a sprocket, gear, sheave or flange plate as the center member that is clamped between two friction facings. Morse® Torque Limiter, Series: TL Series, Straight Bore, 7/8 in Bore Dia, 5 in Outside Dia, 3 in Overall Length, 35 to 155 in-lb, 1000 RPM Maximum, 35 Stock/MTO (NO. 40 Chain), 35 Stock/MTO (NO. 41 Chain), 30 Stock/29 MTO (NO. 50 Chain), 25 Stock/MTO (NO. 60 Chain), 19 Stock/MTO (NO. 80 Chain) Minimum Sprocket Teeth
Morse® 466100Torque Limiter, Series: TL Series, Straight Bore, 7/8 Inch Bore Diameter, 5 Inch Outside Diameter, 3 Inch Overall Length, 35 to 155 in-lb, 1000 RPM Maximum, 35 Stock/MTO (NO. 40 Chain), 35 Stock/MTO (NO. 41 Chain), 30 Stock/29 MTO (NO. 50 Chain), 25 Stock/MTO (NO. 60 Chain), 19 Stock/MTO (NO. 80 Chain) Minimum Sprocket Teeth
IBT #00750034217
MFG #466100
Industry Part #500A-1 TL MPB 7/8
