ShopIBT | Flange Mount Ball Bearing Unit, Industrial Normal Duty, Series: RCJ, 1-7/8 in Bore Dia, 4-3/8 in Bolt Centers, Four-Bolt Flange Mounting Type, 5-5/8 in Overall Length/Diameter, 2.615 in Overall Depth, 5-5/8 in Overall Height, Eccentric Collar Locking

RCJ1 7/8

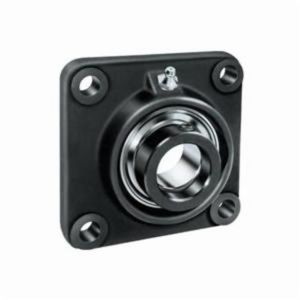

Flange Mount Ball Bearing Unit, Industrial Normal Duty, Series: RCJ, 1-7/8 in Bore Dia, 4-3/8 in Bolt Centers, Four-Bolt Flange Mounting Type, 5-5/8 in Overall Length/Diameter, 2.615 in Overall Depth, 5-5/8 in Overall Height, Eccentric Collar Locking

Factory Order

MFG #RCJ1 7/8

IBT #00845001673

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Bolt Center-to-Center Length: 4-3/8 Inch
Bore Diameter: 1-7/8 Inch
Finish: Uncoated
Flange Mounting Type: 4-Bolt
Load Capacity: 39200 lb Dynamic/5100 lb Static
Locking Device: Eccentric Collar
Maximum Speed: 3000 RPM
Overall Depth: 2.615
Overall Height: 5-5/8 Inch
Overall Length/Diameter: 5-5/8 Inch
Series: RCJ
Temperature Rating: -30 to 275 °F
Type: Industrial Normal Duty

: Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications. Timken® Flange Mount Ball Bearing Unit, Industrial Normal Duty, Series: RCJ, 1-7/8 in Bore, 4-3/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-5/8 in Overall Length/Diameter, 2.615 in Overall Depth, 5-5/8 in Overall Height, Eccentric Collar Locking Device, 39200 lb Dynamic/5100 lb Static Load, 3000 RPM Maximum, -30 to 275 °F, Uncoated

$281.47Each
