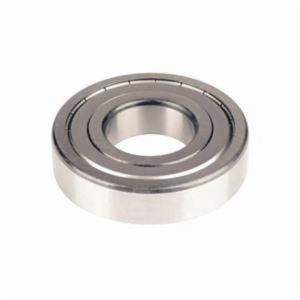

ShopIBT | Radial Deep Groove Ball Bearing, Straight Bore Standard, Series: 6300, 45 mm Bore, 100 mm OD, 1 Rows, 25 mm Width, Double Shield Closure, 48800 N Dynamic/29400 N Static Load, Steel Bearing, Steel Cage, 7800 RPM Grease/11000 RPM Oil Maximum, -50 to 12

6309-ZZ-C3

Radial Deep Groove Ball Bearing, Straight Bore Standard, Series: 6300, 45 mm Bore, 100 mm OD, 1 Rows, 25 mm Width, Double Shield Closure, 48800 N Dynamic/29400 N Static Load, Steel Bearing, Steel Cage, 7800 RPM Grease/11000 RPM Oil Maximum, -50 to 12

Factory Order

MFG #6309-ZZ-C3

IBT #00845253814

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Bearing Material: Steel
Bore Diameter: 45 mm
Cage Material: Steel
Closure Type: Double Shield
Load Capacity: 48800 N Dynamic/29400 N Static
Maximum Speed: 7800 rpm Grease/11000 rpm Oil
Number Of Rows: 1
Outside Diameter: 100
Series: 6300
Temperature Rating: -50 to 120 °C
Type: Straight Bore Standard
Width: 25 mm

: Our deep groove ball bearings deliver reliable performance in a wide range of applications and conditions. With super-finished raceways and controlled geometries, our premium design helps ensure consistent quality. Our portfolio includes standard, thin section, narrow, wide and miniature and extra-small deep groove ball bearings that span 3 to 400 mm bore sizes. The extended product line includes a complete offering of open, shields, seals and snap ring combinations. Fafnir® Radial Deep Groove Ball Bearing, Straight Bore Standard, Series: 6300, 45 mm Bore, 100 mm OD, 1 Rows, 25 mm Width, Double Shield Closure, 48800 N Dynamic/29400 N Static Load, Steel Bearing, Steel Cage, 7800 RPM Grease/11000 RPM Oil Maximum, -50 to 120 °C

$0.00Each

QTYQTY
