ShopIBT | Deep Groove Ball Bearing, Extra Small Straight Bore, Series: 600, 4 mm Bore Dia, 13 mm Outside Dia, 5 mm W, Open Closure, 1.3 kN Dynamic/0.49 kN Static, Steel Cage, 51000 RPM Grease/60000 RPM Oil Maximum

624

Deep Groove Ball Bearing, Extra Small Straight Bore, Series: 600, 4 mm Bore Dia, 13 mm Outside Dia, 5 mm W, Open Closure, 1.3 kN Dynamic/0.49 kN Static, Steel Cage, 51000 RPM Grease/60000 RPM Oil Maximum

Factory Order

MFG #624

IBT #00845311885

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Bore Diameter: 4 mm
Cage Material: Steel
Closure Type: Open
Load Capacity: 1.3 kN Dynamic/0.49 kN Static
Maximum Speed: 51000 RPM Grease/60000 RPM Oil
Outside Diameter: 13 mm
Series: 600
Type: Extra Small Straight Bore
Width: 5 mm

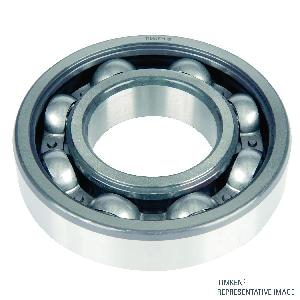

: Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability and capability to run at high speeds. Most bearings in the 6000 series up to 60 mm bore can be made available in stainless steel (AISI 440C material) upon request. Timken® Deep Groove Ball Bearing, Extra Small Straight Bore, Series: 600, 4 mm Bore Dia, 13 mm Outside Dia, 5 mm W, Open Closure, 1.3 kN Dynamic/0.49 kN Static, Steel Cage, 51000 RPM Grease/60000 RPM Oil Maximum

$0.00Each

QTYQTY

Sold in quantities of: 10

Support Services

Learn more about our industrial rubber, engineering, gearing, specialty machining, and maintenance services here.

Timken 624Deep Groove Ball Bearing, Extra Small Straight Bore, Series: 600, 4 mm Bore Dia, 13 mm Outside Dia, 5 mm W, Open Closure, 1.3 kN Dynamic/0.49 kN Static, Steel Cage, 51000 RPM Grease/60000 RPM Oil Maximum
