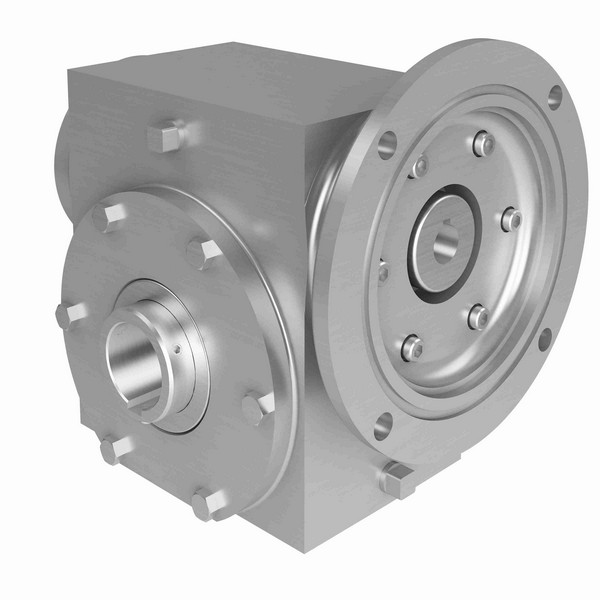

ShopIBT | Worm Gear Reducer, 60:1 Gear Ratio, 1.216 HP Input, 0.835 HP Output, 1 HP Motor, C-Face Quill Input, Hollow Bore Output, 5/8 Inch Diameter Input, 1-1/4 Inch Diameter Output, 29.2 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 1805 in-lb Output, 2.63 Inch Centre Distance, 3/8 x 3/16 Inch Output Keyway, Shaft Mount, 316 Stainless Steel

S263044220

Worm Gear Reducer, 60:1 Gear Ratio, 1.216 HP Input, 0.835 HP Output, 1 HP Motor, C-Face Quill Input, Hollow Bore Output, 5/8 Inch Diameter Input, 1-1/4 Inch Diameter Output, 29.2 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 1805 in-lb Output, 2.63 Inch Centre Distance, 3/8 x 3/16 Inch Output Keyway, Shaft Mount, 316 Stainless Steel

Factory Order

MFG #S263044220

IBT #03071002123

Industry Part #S263044220

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Centre Distance: 2.63 Inch
Dimensions: 7 in W
Gear Ratio: 60:1
Horsepower: 1.216 hp Input, 0.835 hp Output, 1 hp Motor
Input Maximum Speed: 1750 rpm
Input Size: 5/8 in Dia
Input Type: C-Face Quill
Keyway Size: 3/8 x 3/16 in Output
Lubrication Type: PAG Synthetic Oil
Material: 316 Stainless Steel
Mounting Type: Shaft
Output Maximum Speed: 29.2 rpm
Output Size: 1-1/4 in Dia
Output Type: Hollow Bore
Series: SS Series
Torque Rating: 1805 in-lb Output
Type: Right Angle Single Reduction
Width: 13

: Premium Washguard® all stainless reducers offer superior corrosion protection. our stainless steel housing, shaft, covers and external hardware offer an exceptionally long life. each reducer comes with USDA H1 synthetic oil, eliminating the need for oil changes. our premium stainless gear reducers are supplied with 316 grade stainless steel housing and covers. these premium reducers offer superior corrosion protection and can withstand the harshest conditions. available in worm gear reducers, ratio multipliers, helical concentric and helical bevel reducers. Grove Gear® Washguard® Worm Gear Reducer, Right Angle Single Reduction, Series: SS Series, 60:1 Gear Ratio, 1.216 HP Input, 0.835 HP Output, 1 HP Motor, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1-1/4 in Dia Output, 29.2 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 1805 in-lb Output, 2.63 in Centre Distance, 3/8 x 3/16 in Output Keyway, PAG Synthetic Oil Lubrication, Shaft Mount, 316 Stainless Steel, 7 in W

$4,811.02Each

QTYQTY

Support Services

Learn more about our industrial rubber, engineering, gearing, specialty machining, and maintenance services here.

Grove Gear® S263044220Worm Gear Reducer, 60:1 Gear Ratio, 1.216 HP Input, 0.835 HP Output, 1 HP Motor, C-Face Quill Input, Hollow Bore Output, 5/8 Inch Diameter Input, 1-1/4 Inch Diameter Output, 29.2 RPM Output Maximum Speed, 1750 RPM Input Maximum Speed, 1805 in-lb Output, 2.63 Inch Centre Distance, 3/8 x 3/16 Inch Output Keyway, Shaft Mount, 316 Stainless Steel
