Grove Gear®

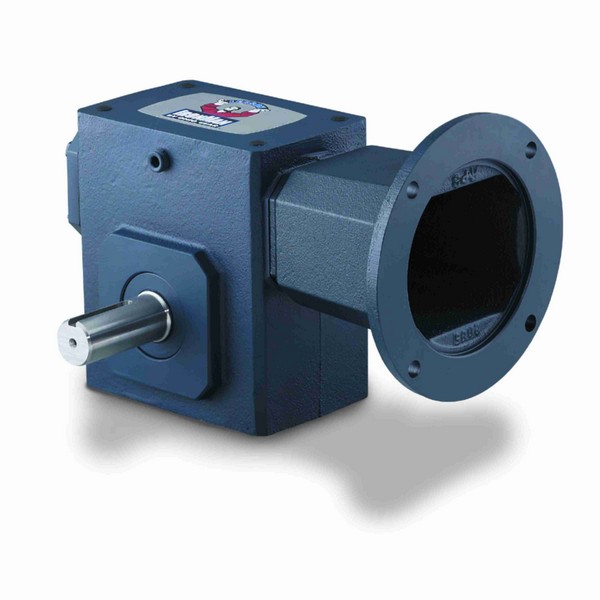

Worm Gear Reducer, Right Angle Single Reduction, 60:1 Gear Ratio, 3.681 hp Input, 2.772 hp Output, C-Face Coupled Input, Shaft Output, 7/8 in Dia Input, 1-7/8 in Dia x 4-1/2 in L Output, 29 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 5989 in-lb Output, 4-1/4 in Centre Distance, 3/16 x 3/32 in Input, Cast Iron

IBT Part#: 03071002540
MFG Part#: GR8420106.00
$3595.66 / Each
http://schema.org/OutOfStock
/Product/03071002540
Worm Gear Reducer, Right Angle Single Reduction, 60:1 Gear Ratio, 3.681 hp Input, 2.772 hp Output, C-Face Coupled Input, Shaft Output, 7/8 in Dia Input, 1-7/8 in Dia x 4-1/2 in L Output, 29 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 5989 in-lb Output, 4-1/4 in Centre Distance, 3/16 x 3/32 in Input, Cast Iron
  • Gear Ratio: 60:1
  • Horsepower: 3.681 hp Input, 2.772 hp Output
  • Input Size: 7/8 in Dia
  • Output Size: 1-7/8 in Dia x 4-1/2 in L
  • Input Type: C-Face Coupling
  • Output Type: Shaft
  • Centre Distance: 4-1/4 Inch
  • Input Maximum Speed: 1750 rpm
  • Keyway Size: 3/16 x 3/32 in Input, 0.5 x 3.06 in Output
  • Lubrication Type: PAG Synthetic Oil
  • Material: Cast Iron
  • Mounting Type: Base
  • Output Maximum Speed: 29 rpm
  • Series: GR Series
  • Torque Rating: 5989 in-lb Output
  • Type: Right Angle Single Reduction
