108022

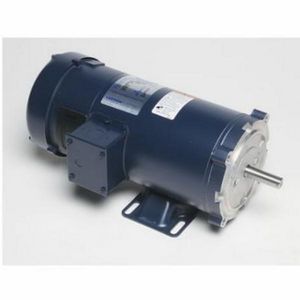

DC Motor, C-Face SCR Rated, 30:1 Constant Torque Speed Range Special Features, 1 HP Power, 90 VDC, 10 A, 1750 RPM Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 Inch Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 441 in-lb Torque, 40 °C, Insulation Class: Class F, Copper
MFG #108022
IBT #50356140
Industry Part #C4D17FK5
- Amperage Rating: 10 AmpsBearing Type: SealedDimensions: 14.82 in L x 6.5 in W x 6.67 in HEnclosure Type: Totally Enclosed Fan CooledFrame: 56CInsulation Class: Class FMaterial: CopperPower Rating: 1 HPRotation: ReversibleService Factor: 1Shaft Size: 5/8 InchSpecial Features: 30:1 Constant Torque Speed RangeSpeed: 1750 RPMTemperature Rating: 40 °CTorque Rating: 441 in-lbType: C-Face SCR RatedVoltage Rating: 90 VDCWidth: 10.44
- The LEESON® brand spans more than 6000 stock AC and DC motors gearmotors and variable speed control solutions. All are built for rugged commercial and industrial applications. Whether you need thousands of motors for OEM applications or a single replacement motor, count on our twenty three stocking warehouses in the USA to get it there right when you need it. Whether you need a motor that withstands extreme temperatures, utilizes a unique mount or other requirement, we have solutions. Look to LEESON® brand motors for innovative custom solutions, and personalized service through your local sales office. LEESON® DC Motor, C-Face SCR Rated, 30:1 Constant Torque Speed Range Special Features, 1 HP Power, 90 VDC, 10 A, 1750 RPM Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 441 in-lb Torque, 40 °C, Insulation Class: Class F, Copper, 14.82 in L x 6.5 in W x 6.67 in H Dimensions
Leeson® 108022DC Motor, C-Face SCR Rated, 30:1 Constant Torque Speed Range Special Features, 1 HP Power, 90 VDC, 10 A, 1750 RPM Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 Inch Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 441 in-lb Torque, 40 °C, Insulation Class: Class F, Copper
IBT #50356140
MFG #108022
Industry Part #C4D17FK5
