6202109

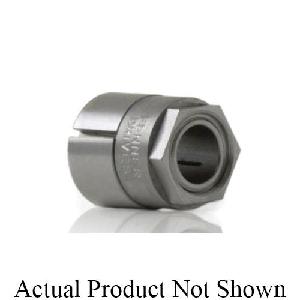

Mini Collar Nut Keyless Bushing, 3/8 Inch Diameter Bore, 3/4 In Outside Diameter, 7/8 Inch Overall Length, Steel
MFG #6202109
IBT #55560040
- Bore Diameter: 3/8 InchFinish: Zinc PlatedHub Contact Pressure: 20890 psiMaterial: SteelOutside Diameter: 3/4 InchOverall Length: 7/8 InchSeries: MiniShaft Contact Pressure: 37920 psiTransmissible Thrust: 2584 lbTransmissible Torque: 485 in-lbType: Collar Nut
- From gears to cams, timing belt sprockets to conveyor rolls, climate control fan hubs to grinding wheels, the extensive range of Trantorque® keyless bushings - all with a single locking nut - offers easy to use options for mounting and adjusting position sensitive, zero backlash drive components and accessories. Fenner Drives® Trantorque® Keyless Bushing, Collar Nut, Series: Mini, 3/8 in Bore, 3/4 in OD, 485 in-lb Transmissible Torque, 2584 lb Transmissible Thrust, 37920 psi Shaft Contact Pressure, 20890 psi Hub Contact, 7/8 in Overall Length, Steel, Zinc Plated
Fenner Drives 6202109Mini Collar Nut Keyless Bushing, 3/8 Inch Diameter Bore, 3/4 In Outside Diameter, 7/8 Inch Overall Length, Steel
IBT #55560040
MFG #6202109
