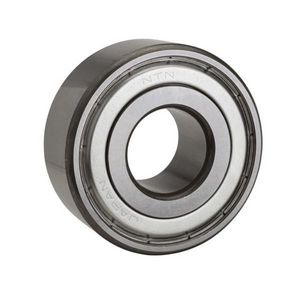

ShopIBT | Angular Contact Ball Bearing, Round Bore, Series: 53 Series, 70 mm Bore, 150 mm OD, 2 Rows, 63.5 mm Width, Single Shield Closure, 159000 N Load, High Carbon Chrome Steel Bearing, Pressed Steel Cage, 3000 RPM Grease Maximum, -40 to 120 °C

5314ZC3

Angular Contact Ball Bearing, Round Bore, Series: 53 Series, 70 mm Bore, 150 mm OD, 2 Rows, 63.5 mm Width, Single Shield Closure, 159000 N Load, High Carbon Chrome Steel Bearing, Pressed Steel Cage, 3000 RPM Grease Maximum, -40 to 120 °C

Factory Order

MFG #5314ZC3

IBT #89900048346

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Bearing Material: High Carbon Chrome Steel
Bore Diameter: 70 mm
Cage Material: Pressed Steel
Closure Type: Single Shield
Load Capacity: 159000 N
Maximum Speed: 3000 rpm Grease
Number Of Rows: 2
Outside Diameter: 150 mm
Series: 53 Series
Temperature Rating: -40 to 120 °C
Type: Round Bore
Width: 63.5 mm

: Double Row Angular Contact Ball Bearings have an inner and outer ring with a double raceway. The two rows are so related that the contact angle is similar to a pair of back-to-back single row bearings. The 5200 and 5300 series offer continuous races and can carry thrust loads in either direction. Since the 3200 and 3300 series have filling slots, it is necessary to mount them with the thrust load acting against the unnotched face of the rings. NTN Angular Contact Ball Bearing, Round Bore, Series: 53 Series, 70 mm Bore, 150 mm OD, 2 Rows, 63.5 mm Width, Single Shield Closure, 159000 N Load, High Carbon Chrome Steel Bearing, Pressed Steel Cage, 3000 RPM Grease Maximum, -40 to 120 °C

$0.00Each

QTYQTY

Support Services

Learn more about our industrial rubber, engineering, gearing, specialty machining, and maintenance services here.

NTN Bearing 5314ZC3Angular Contact Ball Bearing, Round Bore, Series: 53 Series, 70 mm Bore, 150 mm OD, 2 Rows, 63.5 mm Width, Single Shield Closure, 159000 N Load, High Carbon Chrome Steel Bearing, Pressed Steel Cage, 3000 RPM Grease Maximum, -40 to 120 °C
