NUTR30
Yoke Track Roller, Crowned OD Double Row, Series: NUTR, 30 mm Bore, 62 mm Roller Diameter, 28 mm Roller Width, 29 mm Overall Width, 46.2 kN Load, Sealed Closure, 3200 rpm Grease Maximum, -25 to 225 deg F, Steel Roller
Factory Order
MFG #NUTR30
IBT #91526001025
- Bore Diameter: 30 mmClosure Type: SealedLoad Capacity: 46.2 kNMaximum Speed: 3200 rpm GreaseOverall Width: 29 mmRoller Diameter: 62 mmRoller Material: SteelRoller Width: 28 mmSeries: NUTRTemperature Rating: -25 to 225 °FType: Crowned OD Double Row

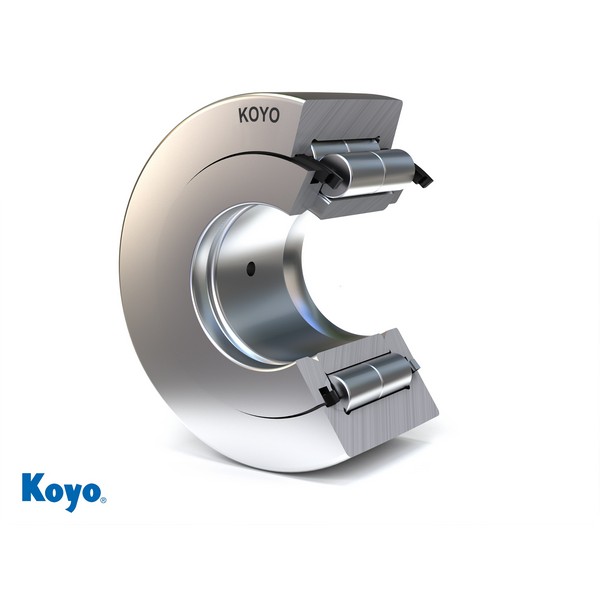

- Track rollers (also known as cam followers) are characterized by their thick walled outer rings that run directly on a track. The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses. Sealed designs with internal thrust washers help extend service life under conditions of infrequent lubrication. Koyo Yoke Track Roller, Crowned OD Double Row, Series: NUTR, 30 mm Bore, 62 mm Roller Diameter, 28 mm Roller Width, 29 mm Overall Width, 46.2 kN Load, Sealed Closure, 3200 RPM Grease Maximum, -25 to 225 °F, Steel Roller
Koyo NUTR30Yoke Track Roller, Crowned OD Double Row, Series: NUTR, 30 mm Bore, 62 mm Roller Diameter, 28 mm Roller Width, 29 mm Overall Width, 46.2 kN Load, Sealed Closure, 3200 rpm Grease Maximum, -25 to 225 deg F, Steel Roller
IBT #91526001025
MFG #NUTR30
