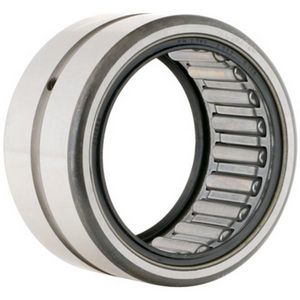

HJ-162416.2RS

Needle Roller Bearing, Caged Heavy Duty, Series: HJ Inch Series, 1 Inch Bore, 1-1/2 Inch Outside Diameter, 1 Inch Width, Contact Double Sealed Closure, 5680 lbf Dynamic/7300 lbf Static Load, Steel Cage, 7600 RPM Maximum, -25 to 225 °F

Factory Order

MFG #HJ-162416.2RS

IBT #91526002483

Industry Part #HJ162416.2RSPBL125

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Bore Diameter: 1 Inch
Cage Material: Steel
Closure Type: Contact Double Sealed
Load Capacity: 5680 lbf Dynamic/7300 lbf Static
Maximum Speed: 7600 RPM
Outside Diameter: 1-1/2 Inch
Series: HJ Inch Series
Temperature Rating: -25 to 225 °F
Type: Caged Heavy Duty
Width: 1 Inch

: Heavy duty needle roller bearings consists of a machined and ground channel-shaped outer ring with a complement of needle rollers and a cage. The high-strength cage retains and guides the rollers. An optional lubrication groove and hole in the outer ring facilitates re-lubrication. These bearings can be used with or without machined and ground inner ring, depending on the suitability of the shaft as a raceway surface. Koyo Needle Roller Bearing, Caged Heavy Duty, Series: HJ Inch Series, 1 in Bore, 1-1/2 in OD, 1 in Width, Contact Double Sealed Closure, 5680 lbf Dynamic/7300 lbf Static Load, Steel Cage, 7600 RPM Maximum, -25 to 225 °F

$41.04Each

QTYQTY

Support Services

Learn more about our industrial rubber, engineering, gearing, specialty machining, and maintenance services here.

Koyo HJ-162416.2RSNeedle Roller Bearing, Caged Heavy Duty, Series: HJ Inch Series, 1 Inch Bore, 1-1/2 Inch Outside Diameter, 1 Inch Width, Contact Double Sealed Closure, 5680 lbf Dynamic/7300 lbf Static Load, Steel Cage, 7600 RPM Maximum, -25 to 225 °F
