056803

Ball Bearing Unit, Series: 207, 1-7/16 Inch Bore, 5.12 Inch Bolt Center-to-Center Length, 2-Bolt Base Flange Mounting, 6.18 Inch Overall Length/Diameter, 1.76 Inch Overall Depth, 3-1/2 Inch Overall Height, 65° Set Screw Locking Device, Steel Bearing, 5759 lb Dynamic/3461 lb Static Load, 4500 RPM Maximum, -20 to 225 °F, Uncoated

Factory Order

MFG #056803

IBT #00160045034

Industry Part #F2B-SCEZ-107-SH

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Bearing Material: Steel
Bolt Center-to-Center Length: 5.12 Inch
Bore Diameter: 1-7/16 Inch
Finish: Uncoated
Flange Mounting Type: 2-Bolt Base
Load Capacity: 5759 lb Dynamic/3461 lb Static
Locking Device: 65 deg Set Screw
Maximum Speed: 4500 RPM
Overall Depth: 1.76 Inch
Overall Height: 3-1/2 Inch
Overall Length/Diameter: 6.18 Inch
Series: 207
Temperature Rating: -20 to 225 °F
Type: Normal Duty Non-Expansion

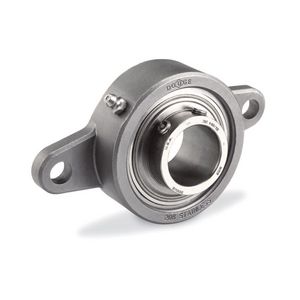

: Dodge® E-Z-Kleen® mounted ball bearings are ideal for washdown applications. The corrosion-resistant nickel composite plated insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant. Shaft attachment methods include SC set screw, D-LOK® concentric and Grip-Tight® adapter. Dodge® E-Z-Kleen® Ball Bearing Unit, Normal Duty Non-Expansion, Series: 207, 1-7/16 in Bore, 5.12 in Bolt Center-to-Center Length, 2-Bolt Base Flange Mounting, 6.18 in Overall Length/Diameter, 1.76 in Overall Depth, 3-1/2 in Overall Height, 65 deg Set Screw Locking Device, Steel Bearing, 5759 lb Dynamic/3461 lb Static Load, 4500 RPM Maximum, -20 to 225 °F, Uncoated

$207.00Each

QTYQTY

Support Services

Learn more about our industrial rubber, engineering, gearing, specialty machining, and maintenance services here.

Dodge 056803Ball Bearing Unit, Series: 207, 1-7/16 Inch Bore, 5.12 Inch Bolt Center-to-Center Length, 2-Bolt Base Flange Mounting, 6.18 Inch Overall Length/Diameter, 1.76 Inch Overall Depth, 3-1/2 Inch Overall Height, 65° Set Screw Locking Device, Steel Bearing, 5759 lb Dynamic/3461 lb Static Load, 4500 RPM Maximum, -20 to 225 °F, Uncoated
