ShopIBT | Pillow Block Roller Bearing Unit, 2-11/16 Inch Bore, 9.88 to 11 Inch Bolt Center-to-Center Length, 3-1/2 Inch Base to Bore Centerline, 12.59 Inch Overall Length, 4-1/2 Inch Overall Width, 7.67 Inch Overall Height, Two-Bolt Base Mounting, Tapered Bore, 3-1/2 Inch Base Width, Non-Expansion (Fixed) Expansion, Cast Iron, Black Oxide

37586

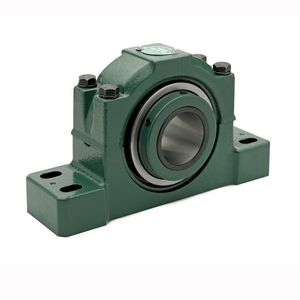

Pillow Block Roller Bearing Unit, 2-11/16 Inch Bore, 9.88 to 11 Inch Bolt Center-to-Center Length, 3-1/2 Inch Base to Bore Centerline, 12.59 Inch Overall Length, 4-1/2 Inch Overall Width, 7.67 Inch Overall Height, Two-Bolt Base Mounting, Tapered Bore, 3-1/2 Inch Base Width, Non-Expansion (Fixed) Expansion, Cast Iron, Black Oxide

Factory Order

MFG #37586

IBT #00160051520

Industry Part #P2B516-TAF-211R

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Base to Bore Centerline: 3-1/2 Inch
Base Width: 3-1/2 Inch
Bolt Center-to-Center Length: 9.88 to 11 Inch
Bore Diameter: 2-11/16 Inch
Bore Type: Tapered
Expansion Type: Non-Expansion (Fixed)
Finish: Black Oxide
Load Capacity: 11120 lb Dynamic/61200 lb Static
Locking Device: 65 deg Set Screw
Material: Cast Iron
Maximum Speed: 2060 RPM
Mounting Type: Two-Bolt Base
Overall Height: 7.67 Inch
Overall Length: 12.59 Inch
Overall Width: 4-1/2 Inch
Seal Type: Triple Lip
Series: 211
Type: Type TAF

: Dodge® Type E-Xtra, K, DI, TAF and EXL double row tapered roller bearings have the capacity to carry heavy radial loads and combined radial and thrust loads. The maximum recommended load which can be applied is limited by various components in the system such as bearing, housing, shaft, shaft attachment, speed and life requirements as listed in this catalog. Dodge® tapered roller bearings have been applied successfully even when these limits have been exceeded under controlled operating conditions. Dodge® Pillow Block Roller Bearing Unit, Type TAF, Series: 211, 2-11/16 in Bore, 9.88 to 11 in Bolt Center-to-Center Length, 3-1/2 in Base to Bore Centerline, 12.59 in Overall Length, 4-1/2 in Overall Width, 7.67 in Overall Height, Two-Bolt Base Mounting, Tapered Bore, 3-1/2 in Base Width, 65 deg Set Screw Locking Device, Triple Lip Seal, Non-Expansion (Fixed) Expansion, 11120 lb Dynamic/61200 lb Static Load, 2060 RPM Maximum, Cast Iron, Black Oxide

: Dodge_023076_Specification_Sheet_2_l

$1,168.78Each
