Right Angle Worm Gear Speed Reducer, Size 20 Standard, 50:1 Gear Ratio, Quill Input, Solid A Shaft Output, 1 in Output, 2 in Centre Distance, 3/16 in L x 3/16 in W x 1-1/2 in H Keyway, 60 to 95% Efficiency, Left, Synthetic Oil Lubrication, No Base Mo

Factory Order

MFG #202Q50L56

IBT #00160126961

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Centre Distance: 2 Inch
Dimensions: 8.6 in L x 9.195 in W x 7.5 in H
Efficiency: 60 to 95 %
Gear Ratio: 50:1
Input Maximum Speed: 1750 rpm
Input Type: Quill
Keyway Size: 3/16 in L x 3/16 in W x 1-1/2 in H
Lubrication Type: Synthetic Oil
Material: Gray Iron
Mounting Type: No Base
Output Size: 1 Inch
Output Type: Solid A Shaft
Rotation Type: Left Hand
Type: Size 20 Standard

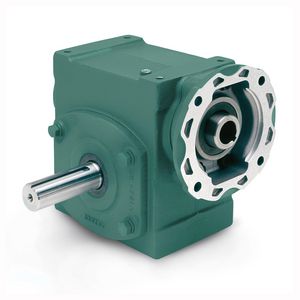

: The Tigear-2® is a right angle, single stage worm gear reducer with a rugged cast iron housing and power dense gearing design to ensure maximum reliability. Stainless Steel and the exclusive E-Z-Kleen® finish are available for tough washdown applications. Dodge® Tigear-2® Right Angle Worm Gear Speed Reducer, Size 20 Standard, 50:1 Gear Ratio, Quill Input, Solid A Shaft Output, 1 in Output, 1750 RPM Input Maximum, 2 in Centre Distance, 3/16 in L x 3/16 in W x 1-1/2 in H Keyway, 60 to 95 % Efficiency, Left Hand Rotation, Synthetic Oil Lubrication, No Base Mounting, Gray Iron, 8.6 in L x 9.195 in W x 7.5 in H Dimensions
