ShopIBT | Right Angle Worm Gear Speed Reducer, Size 40 Standard, 50:1 Gear Ratio, 3.63 hp, 3-Piece Coupled Input, Solid B Shaft Output, 1-1/8 in Input, 1-7/8 in Output, 35 rpm Output Max Speed, 1750 rpm Input Max Speed, 4559 in-lb, 4 in Centre Distance, 3.53 i

40A50R18

Right Angle Worm Gear Speed Reducer, Size 40 Standard, 50:1 Gear Ratio, 3.63 hp, 3-Piece Coupled Input, Solid B Shaft Output, 1-1/8 in Input, 1-7/8 in Output, 35 rpm Output Max Speed, 1750 rpm Input Max Speed, 4559 in-lb, 4 in Centre Distance, 3.53 i

Factory Order

MFG #40A50R18

IBT #00160142009

Get more details such as product availability, wishlist management and more when you register an IBT Industrial Solutions account.

: Centre Distance: 4 Inch
Dimensions: 17.99 in L x 16.24 in W x 12.94 in H
Efficiency: 60 to 95 %
Gear Ratio: 50:1
Horsepower: 3.63 hp
Input Maximum Speed: 1750 rpm
Input Size: 1-1/8 Inch
Input Type: 3-Piece Coupled
Keyway Size: 3.53 in L x 0.5 in W x 0.5 in H
Lubrication Type: Synthetic Oil
Material: Gray Iron
Mounting Type: No Base
Output Maximum Speed: 35 rpm
Output Size: 1-7/8 Inch
Output Type: Solid B Shaft
Rotation Type: Right Hand
Torque Rating: 4559 in-lb
Type: Size 40 Standard

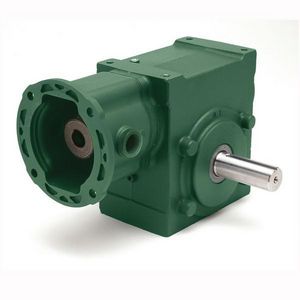

: The Tigear-2® is a right angle, single stage worm gear reducer with a rugged cast iron housing and power dense gearing design to ensure maximum reliability. Stainless Steel and the exclusive E-Z-Kleen® finish are available for tough washdown applications. Dodge® Tigear-2® Right Angle Worm Gear Speed Reducer, Size 40 Standard, 50:1 Gear Ratio, 3.63 HP, 3-Piece Coupled Input, Solid B Shaft Output, 1-1/8 in Input, 1-7/8 in Output, 35 RPM Output Maximum, 1750 RPM Input Maximum, 4559 in-lb Torque, 4 in Centre Distance, 3.53 in L x 0.5 in W x 0.5 in H Keyway, 60 to 95 % Efficiency, Right Hand Rotation, Synthetic Oil Lubrication, No Base Mounting, Gray Iron, 17.99 in L x 16.24 in W x 12.94 in H Dimensions
